Arianna Multipurpose PVC/NBR Rubber 20 Bar Oil & Water Delivery Hose

Product Code: MURX

Arianna Multipurpose - Black PVC/NBR Hose | High Pressure

Description

This Black PVC/NBR Hose is designed for durability and efficiency, with an extremely smooth surface both inside and out for optimal flow. It's built to withstand a variety of harsh conditions including:

Features and Applications

Durability: Resistant to chemical exposure, weather extremes, microbial growth, hydrolysis, aging, ozone and UV radiation.
Working Pressure: Constant working pressure of up to 20 bar accross all sizes.
Industries: Agriculture, Waste Management, Chemical, Oil, and Solvents, Oil Mist Extraction.

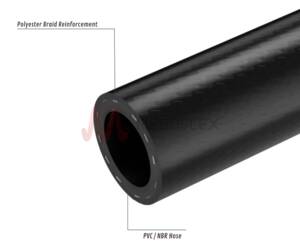

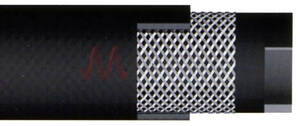

Material: Flexible PVC/NBR with a braided polyester thread reinforcement for enhanced strength.

Ideal for the pressurised delivery of air, water, oils, lubricants, and chemicals, in agricultural applications Arianna Multipurpose is suited for the precision application of fungicides, fertilisers, and herbicides through atomisers. With an internal diameter range of 6mm to 25mm and operational temperature tolerance from -25°C to +90°C, it's a flexible and reliable choice for environments where chemical resistance and longevity are crucial. Bore Finish: Smooth

Temperature

-20°C to 80°C

Suitable Media

Fungicide solutions
Fertilisers
Herbicides
Pesticides
Compressed air

Applications

Agriculture
Trailed atomisers
Irrigation
Gardening
Waste management

Construction

Wall: PVC/NBR
Reinforcement: Polyester

Certification

RoHS
REACH

Available Colours

Black

Part	Inner Diameter	I.D. (64th inch)	Inner Diameter	Outer Diameter	Wall Thickness	Working Pressure	Burst Pressure	Bend Radius	Weight	Length	Volume	Availability
	″	″
MURX006	25	¹⁄₄	6	13	3.5	20	60	40	165	100	0.032	Good
MURX008	⁵⁄₁₆	⁵⁄₁₆	8	15	3.5	20	60	40	165	100	0.036	Good
MURX01016	375	³⁄₈	10	16	3	20	60	70	165	100	0.041	Good
MURX01017	375	³⁄₈	10	17	3.5	20	60	70	195	100	0.044	Good
MURX01319	5	¹⁄₂	13	19	3	20	60	90	200	100	0.058	Good
MURX01320	5	¹⁄₂	13	20	3.5	20	60	90	240	100	0.061	Good
MURX016	625	⁵⁄₈	16	23	3.5	20	60	80	285	100	0.042	Good
MURX019	75	³⁄₄	19	28	4.5	20	60	100	445	50	0.087	Good
MURX025	1	1	25	34	4.5	20	60	130	490	50	0.11	Good

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 or email us at sales@megaflex.co.uk for further details!
