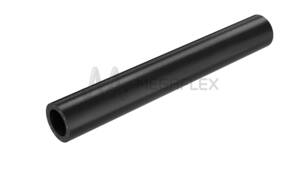

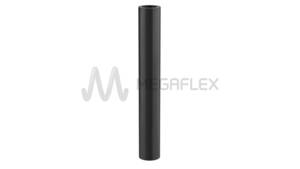

Air Hose 10 Bar Working Pressure Thermoplastic Design for Compressed Air
Product Code: AZ
Description
Our Thermoplastic Hose reinforced with crosslinked polyester, designed specifically for compressed air applications, features a working pressure of 10 Bar with bore sizes ranging from 6mm to 25mm.
Features and Applications
This hose is excellent for compressed air systems, providing reliable performance due to its high-pressure capabilities. Crafted from durable thermoplastic materials, it ensures efficient air flow with its smooth interior and flexible construction, making it ideal for industrial and pneumatic applications where a steady, reliable air supply is critical.
Properties
It's engineered for flexibility and durability, offering resistance to wear, kinking, and temperature variations typical in compressed air environments. This hose maintains its integrity under pressure, withstanding the rigors of industrial use while providing a long service life. Its construction ensures minimal air loss, enhancing energy efficiency in air tool operations and other pneumatic equipment. Bore Finish: Smooth
Temperature
- -10°C to 60°C
Applications
- Compressed air systems
- Industrial applications
- Pneumatic tools
- Air supply
- Manufacturing
- Machinery
- Air compressor
- Air brake systems
- Energy efficiency
- Air delivery

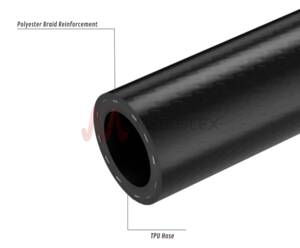

Construction
- Wall: TPU
- Reinforcement: Polyester
Suitable Media
- Air
- Compressed air
Certification
- RoHS
- REACH
Available Colours
- Black
| Part | Inner Diameter | I.D. (64th inch) | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Weight | Length |
|---|---|---|---|---|---|---|---|---|---|
| ″ | ″ | ||||||||
| AZ06 | 25 | 1⁄4 | 6 | 11 | 2.5 | 10 | 30 | 85 | 30 |
| AZ08 | 3125 | 5⁄16 | 8 | 13 | 2.5 | 10 | 30 | 105 | 30 |
| AZ10 | 375 | 3⁄8 | 10 | 15 | 2.5 | 10 | 30 | 125 | 30 |
| AZ13 | 5 | 1⁄2 | 13 | 19 | 3 | 10 | 30 | 190 | 30 |
| AZ16 | 625 | 5⁄8 | 16 | 23 | 3.5 | 10 | 30 | 270 | 30 |
| AZ19 | 75 | 3⁄4 | 19 | 26 | 3.5 | 10 | 30 | 315 | 30 |
| AZ25 | 1 | 1 | 25 | 33 | 4 | 10 | 30 | 465 | 30 |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
