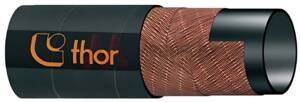

Conductive Rubber Shotblast Hose Mandrel Build Material Handling Hose
Product Code: T874A
Description
The Mandrel-Manufactured Light Duty Pressure Hose is built to transport mortar, screed, plaster, concrete, gypsum, and other wet, abrasive media, serving as a vital tool for shotcrete machines, tunnel construction, and public works. It’s perfectly suited for tasks like reinforcing tunnel walls or applying plaster in large-scale infrastructure projects.
With a constant 12 Bar working pressure across sizes ranging from 13mm to 65mm inner diameters, this hose features a minimum 8mm wall thickness for durability. Its black smooth conductive rubber tube, abrasion-resistant at 70mm³ per DIN ISO 4649, ensures efficient handling of gritty, moist materials.
TubeBlack smooth conductive rubber, abrasion resistant.
Reinforcement
High tensile textile plies.
Cover
Black, smooth rubber, weather and abrasion resistant. Fabric impression.
Pressure Consistency:
12 Bar across all sizes.
Size Options:
13mm to 65mm ID with minimum 8mm wall thickness. Bore Finish: Smooth
Applications
- Shotcrete reinforcement
- Tunnel construction
- Public works delivery
- Concrete placement
- Plaster spraying
- Mortar transport
- Infrastructure plastering
- Screed application
- Civil engineering tasks
- Abrasive media transfer
Temperature
- -40°C to 70°C
Suitable Media
- Shotblast
- Abrasive materials
- Mortar
- Screed
- Plaster
- Concrete
- Gypsum
- Wet abrasive media
Construction
- Inner Layer: Rubber
- Outer Cover: Rubber
- Reinforcement: High tensile synthetic textile plies
Electrical Resistance
- Antistatic ✔
Certification
- DIN ISO 4649
Available Colours
- Black
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Weight | Length | Availability |
|---|---|---|---|---|---|---|---|---|
| T874A/10 | 10 | 22 | 6 | 12 | 36 | 500 | 40 | Good |
| T874A/13 | 13 | 27 | 7 | 12 | 36 | 600 | 40 | Good |
| T874A/19 | 19 | 33 | 7 | 12 | 36 | 700 | 40 | Good |
| T874A/25 | 25 | 38 | 6.5 | 12 | 36 | 800 | 40 | Good |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
