Cristallo Food Grade PVC-P Hose for Beverages, Juice, Wine, and Spirits

Product Code: CR01

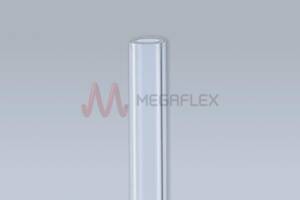

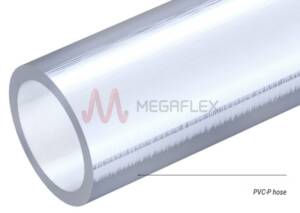

Transparent Food-Grade PVC Tubing | EU Certified - Cristallo

Description

Transparent monolayer food-grade PVC-P tubing for easy detection of transferred substances. It is resistant to weathering and most chemicals.

Features and Applications

Cristallo is suitable for the delivery of food liquids, beverages, fruit juice, vinegar, wine, and spirits. Cristallo is not just limited to the food industry; it's also ideal for marine applications where durability and resistance to harsh conditions are paramount and filling and dosing machines, where precision and cleanliness are critical.

Properties

Its chemical resistance properties mean it can withstand weathering and exposure to a broad spectrum of chemicals. The transparency of the tubing not only allows for easy monitoring of the fluid transfer process but also adds an aesthetic appeal to your operations. Its design ensures that there are no layers to delaminate, thus preserving the purity of the substances it transports. The use of PVC-P not only enhances the tubing's mechanical properties but also its chemical resistance, making it a versatile choice. Bore Finish: Smooth

Temperature

-10°C to 60°C

Food Quality

EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
Suitable for alcohol up to 20%.

Suitable Media

Food liquids
Beverages
Fruit juice
Vinegar
Wine
Spirits
Water

Applications

Food industry
Marine
Filling and dosing machines

Certification

EU 10/2011
RoHS
REACH

Construction

Wall: PVC-P

Available Colours

Clear

Part	Inner Diameter	Outer Diameter	Wall Thickness	Bend Radius	Weight	Length	Volume	Availability

CR01030050	3	5	1	18	15	200	0.013	Production
CR01032056	3.2	5.6	1.2	19.2	20	200	0.015	Production
CR01040060	4	6	1	24	20	200	0.016	Production
CR01040070	4	7	1.5	24	30	200	0.019	Production
CR01050080	5	8	1.5	30	35	200	0.023	Production
CR01060090	6	9	1.5	36	45	100	0.018	Production
CR01070100	7	10	1.5	42	50	100	0.020	Production
CR01070110	7	11	2	42	70	100	0.023	Production
CR01080110	8	11	1.5	48	55	100	0.023	Production
CR01080120	8	12	2	48	75	100	0.025	Production
CR01090120	9	12	1.5	54	60	100	0.025	Production
CR01100130	10	13	1.5	60	65	100	0.028	Production
CR01100140	10	14	2	60	90	100	0.032	Production
CR01100160	10	16	3	60	150	100	0.041	Production
CR01120150	12	15	1.5	72	75	100	0.036	Production
CR01120160	12	16	2	72	105	100	0.041	Production
CR01130170	13	17	2	78	115	100	0.044	Production
CR01130180	13	18	2.5	78	145	100	0.050	Production
CR01150190	15	19	2	90	130	50	0.033	Production
CR01150200	15	20	2.5	90	165	50	0.034	Production
CR01150210	15	21	3	90	205	50	0.035	Production
CR01160200	16	20	2	96	135	50	0.034	Production
CR01160210	16	21	2.5	96	175	50	0.035	Production
CR01190240	19	24	2.5	114	205	50	0.073	Production
CR01200260	20	26	3	120	260	50	0.083	Production
CR01220300	22	30	4	132	395	50	0.092	Production
CR01250310	25	31	3	150	320	50	0.100	Production
CR01250320	25	32	3.5	150	380	50	0.102	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 or email us at sales@megaflex.co.uk for further details!
