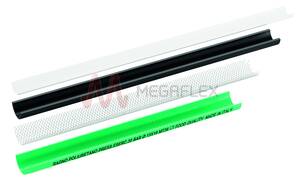

Ragno PU - Polyurethane TPR Compound Delivery Hose Reinforced with Polyester Yarn
Product Code: 915005
Description
Antiabrasive Polyurethane (PU) and thermoplastic rubber compound hose with polyester yarn reinforcement, for pneumatic tools in general, airbrushes and water based paint sprayers.
Temperature
- -15°C to 60°C
Available Colours
- Green
- Blue
| Part | Inner Diameter | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | W.P. at 40°C | W.P. at 60°C | Burst Pressure | Bend Radius | Weight | Length | Colour |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ″ | ||||||||||||
| 915005006 | 1⁄4 | 6 | 10 | 2 | 20 | 17 | 15 | 60 | 20 | 70 | 100 | Green |
| 915005008 | 5⁄16 | 8 | 12 | 2 | 20 | 17 | 15 | 60 | 22 | 85 | 60 | Green |
| 915005010 | 3⁄8 | 10 | 15 | 2.5 | 20 | 17 | 15 | 60 | 38 | 130 | 50 | Green |
| 915005013 | 1⁄2 | 13 | 19 | 3 | 20 | 17 | 15 | 60 | 65 | 195 | 30 | Green |
| 915005016 | 5⁄8 | 16 | 22.5 | 3.2 | 20 | 17 | 15 | 60 | 60 | 250 | 25 | Green |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
