Description
Extra-flexible Marine Sanitation Hose, whose structure and compounds assure a perfectly smooth tube, antiadherent, odourless, resistant to growth of bacteria and with a low friction factor. Used for all head and holding tank connections and suitable for acids and bases .The tube complies with European food norms and F.D.A. standards; as a result, the hose can be used in all cases where food quality is prerequisite. Complies with ISO 8099:2000 par. 5, 6.1.10 and 6.4. Good resistance to mechanical stresses

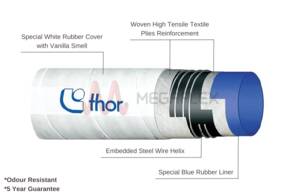

Tube
Blue special rubber resistant to diffusion of bad odours and to growing of bacteria with permeability values of 5,80% in methyl alcohol.
Reinforcement
High tensile textile plies, embedded steel wire helix.
Cover
Special white rubber, with vanilla smell, ageing, weather conditions, sea water and cleansing resistant. Fabric impression.
Marking
SANYBOAT - IMPERMEABLE AND ODOURLESS HOSE W.P. 7 BAR ? 100 PSI - 5 YEARS GUARANTEE (in light blue letters)
Comment
THE HOSE IS GUARANTEED FOR 5 YEARS.Datasheet Available
Temperature Range
-30°C to 80°C
Colour: White
| Part | ID ⌀ | OD ⌀ | Wall | Weight | Bend Radius | WP | Vacuum |
|---|---|---|---|---|---|---|---|
| No. | |||||||
| SANYBOAT36PW/19 | 19 | 29 | 5 | 410 | 40 | 7 | 9 |
| SANYBOAT36PW/25 | 25 | 35 | 5 | 520 | 50 | 7 | 9 |
| SANYBOAT36PW/32 | 32 | 42 | 5 | 700 | 60 | 7 | 9 |
| SANYBOAT36PW/38 | 38 | 48 | 5 | 860 | 80 | 7 | 9 |
| SANYBOAT36PW/40 | 40 | 50 | 5 | 900 | 80 | 7 | 9 |
| SANYBOAT36PW/45 | 45 | 55 | 5 | 1000 | 90 | 7 | 9 |
| SANYBOAT36PW/50 | 50 | 60 | 5 | 1100 | 100 | 7 | 9 |
| SANYBOAT36PW/60 | 60 | 70 | 5 | 1350 | 130 | 7 | 9 |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
