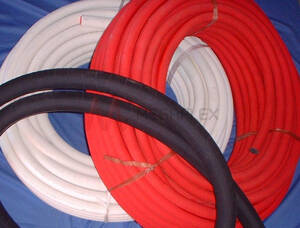

Steam Hose manufactured to BS 5122 Type A2 and ISO 6134. Cover: Black EPDM excellent resistance to ageing and weathering. Reinforced with High tensile nylon plies. The Black EPDM is compounded to withstand steam up to 170°C. It is strongly recommended that steam hose couplings and the correct size clamps are always used. It is not recommended that couplings are swaged onto steam hose.Datasheet Available
Temperature Range
-40°C to 170°C
Colour: Black
| Part | ID ⌀ | OD ⌀ | Weight | WP | BP | Coil Length |
|---|---|---|---|---|---|---|
| No. | ||||||
| T573/10 | 10 | 21 | 500 | 7 | 70 | 40 |
| T573/13 | 13 | 29 | 550 | 7 | 70 | 40 |
| T573A/13 | 13 | 25 | 400 | 7 | 70 | 40 |
| T573/16 | 16 | 28 | 550 | 7 | 70 | 40 |
| T573A/19 | 19 | 31 | 500 | 7 | 70 | 40 |
| T573/19 | 19 | 35 | 700 | 7 | 70 | 40 |
| T573/22 | 22 | 37 | 800 | 7 | 70 | 40 |
| T573A/25 | 25 | 39 | 800 | 7 | 70 | 40 |
| T573/25 | 25 | 41 | 900 | 7 | 70 | 40 |
| T573/32 | 32 | 46 | 1100 | 7 | 70 | 40 |
| T573/35 | 35 | 48 | 1200 | 7 | 70 | 40 |
| T573/38 | 38 | 54 | 1300 | 7 | 70 | 40 |
| T573/51 | 51 | 68 | 1500 | 7 | 70 | 40 |
| T573/63 | 63 | 80 | 2100 | 7 | 70 | 40 |
| T573/76 | 76 | 94 | 3000 | 7 | 70 | 40 |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
