Vulcano PU S1 - Ester Polyurethane Ducting Reinforced with Steel Wire Helix (Light Duty)Vulcano PU S1 - Ester Polyurethane Ducting Reinforced with Steel Wire Helix (Light Duty)Vulcano PU S1 - Ester Polyurethane Ducting Reinforced with Steel Wire Helix (Light Duty)Vulcano PU S1 - Ester Polyurethane Ducting Reinforced with Steel Wire Helix (Light Duty)Vulcano PU S1 - Ester Polyurethane Ducting Reinforced with Steel Wire Helix (Light Duty)
Vulcano PU S1 - Ester Polyurethane Ducting Reinforced with Steel Wire Helix (Light Duty)Vulcano PU S1 - Ester Polyurethane Ducting Reinforced with Steel Wire Helix (Light Duty)Vulcano PU S1 - Ester Polyurethane Ducting Reinforced with Steel Wire Helix (Light Duty)Vulcano PU S1 - Ester Polyurethane Ducting Reinforced with Steel Wire Helix (Light Duty)Vulcano PU S1 - Ester Polyurethane Ducting Reinforced with Steel Wire Helix (Light Duty)

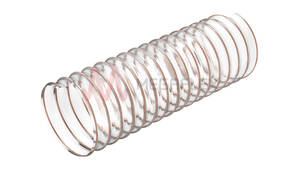

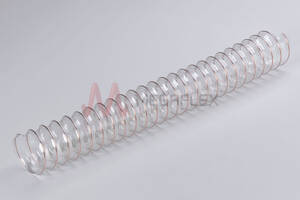

Vulcano PU S1 - Ester Polyurethane Ducting Reinforced with Steel Wire Helix (Light Duty)

Applications
Woodworking industry, dust extraction, vapours, small industrial cleaning and suction plants. Suction of dry food only.

Technical

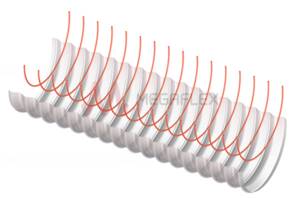

Ester based Polyurethane duct reinforced with a steel spiral coppered coated. Constant wall thickness of 0.40mm.

Properties
Very light and flexible, axially compressible (about 5:1) for easy handling and costs saving in stocking and transporting. The PU-coated spiral allows more bending sessions, thus the duct has good mechanical properties and it is especially suitable for dynamic applications. Resistant to abrasion. Halogen free conforms to RoHS and phthalates free.

Standards
It can be made electrically bonded by earthing the steel spiral in accordance to TRB S 2153. The electrical resistance R ≤ 102 Ohm/m is according to ISO 8031 - ATEX Directive 94/4/EC and 99/92/EC). For dry food only according to EU Regulation 10/2011, RoHS 2011/65/EU Directive, REACH Regulation (1907/2006).

Accessories
Single bridge clampsDatasheet Available

Temperature Range
-40°C to 90°C (intermittently up to 125°C)

Colour: Clear

Conductivity
This product can be made "Electrically Bonded" by grounding the spiral

Please note: Hose, Tubing, Ducting and Conduit currently cannot be ordered using the website.
Please speak to a sales agent for a quotation on 01636816612.
PartID ⌀WallMin. WallWeightBend RadiusVacuumCoil LengthVolume
No.
W401025250.40.4130250.4100.054
W401032320.40.4160250.4100.066
W401038380.40.4185300.4100.076
W401045450.40.4215360.4100.092
W401051510.40.4205400.4100.108
W401060600.40.4235500.4100.137
W401063630.40.4245550.4100.15
W401065650.40.4255560.4100.162
W401070700.40.4360600.4100.181
W401076760.40.4390650.4100.232
W401080800.40.4405650.4100.254
W401090900.40.4455750.4100.294
W4011021020.40.4510850.3100.286
W4011101100.40.4550900.3100.318
W4011151150.40.4575950.3100.331
W4011201200.40.45951000.25100.369
W4011271270.40.46301050.25100.402
W4011301300.40.46451050.2100.424
W4011401400.40.46951150.2100.5
W4011521520.40.47501250.2100.541
W4011601600.40.48701300.15100.659
W4011801800.40.49751500.15100.846
W4012032030.40.411001650.1101.14
W4012202200.40.411901850.1100.898
W4012282280.40.412301850.1100.929
W4012542540.40.413702100.1101.184
W4013053050.40.416402500.08101.613
W4013153150.40.416952750.07101.664
W4013563560.40.419103000.07
W4014064060.40.421753500.06

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
