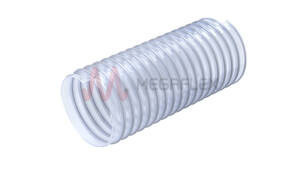

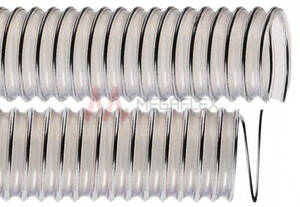

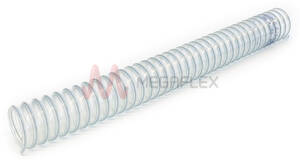

Vulcano 12 ET Ether-PU Ducting with Steel Helix (Heavy Duty)

Product Code: VO01

Vulcano 12 ET - Thick Wall TPU Hose for Abrasive Media

Description

The Vulcano 12 ET Hose is a robust solution crafted with a thick wall, perfectly suited for the conveyance of highly abrasive media, including powders, granules, and even damp industrial processing waste. Excelling in high-speed pneumatic systems of small to medium-sized plants, sweeping and grass cutting equipment. Its compatibility extends to food-grade granules and powders, making it an ideal choice for the transportation of plastic granules used in food packaging or pharmaceutical plants, ensuring both durability and compliance with stringent industry standards.

Technical Specifications

Material: Constructed from ether-based polyurethane, reinforced with a high adhesion TPU-coated steel spiral.
Wall Thickness: Robust and uniform at 1.2mm across all diameters for consistent performance.
Flow Characteristics: Smooth bore to facilitate optimal flow of materials.
Anti-Static: Permanent antistatic properties (R<10⁹ Ohm/m).
Can be made conductive (R<10² Ohm/m) by grounding the spiral in line with ISO 8031 and ATEX Directives.

Properties

Exceptional resistance to microbes, hydrolysis, chemicals, ozone, UV rays, and various weather conditions.
Maintains the odourless profile and does not alter the organoleptic properties of the materials it conveys.
Offers an excellent bending radius, even in cold temperatures, ensuring flexibility in use.
Compliant with being halogen and phthalate-free, adhering to RoHS regulations.

Standards and Compliance

Meets food safety standards according to EU Regulation 10/2011 (classes A, B, C, D1, D2, E) and FDA standards (title 21 CFR 177.2600).
Conforms to the RoHS 2011/65/EU Directive and REACH Regulation (1907/2006).

Optional: Accessories and Fittings

Available with single and double bridge clamps for secure connections.

Bore Finish: Smooth

Food Quality

FDA regulations (Title 21 CFR 177.2600 Part D for dry foods).
FDA regulations (Title 21 CFR 177.2600 Part E for aqueous foods).
EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
EU Regulation 10/2011 Food Simulant D1: Alcohol content >20% and oil-in-water emulsions.
EU Regulation 10/2011 Food Simulant D2: Foods with free fats at the surface.
EU Regulation 10/2011 Food Simulant E: Testing specific migration into dry foods.

Temperature

-40°C to 90°C, intermittently as high as 125°C

Suitable Media

Powders
Abrasive granules
Industrial processing waste
Air
Fumes
Abrasive powders
Dry food
Grains
Animal feed
Sugar
Flour
Abrasive foodstuff
Fatty foods

Applications

Pneumatic transport
Food industry
Pharmaceutical industry
Plastic industry
Street cleaning machines
Agriculture

Certification

ATEX DIRECTIVE 2014/34/UE and 99/92/EC
ISO 8031
EU 10/2011
FDA 21 CFR 177.2600
RoHS
REACH

Electrical Resistance

Conductive to 10² Ω/m by grounding the copper braid wire.

Construction

Wall: Ether-TPU
Helix: TPU-coated Steel

Available Colours

Clear

Part	Inner Diameter	Wall Thickness	Vacuum Rating	Bend Radius	Weight	Length	Volume	Availability

VO01025	25	1.2	6	30	245	20	0.046	Production
VO01030	30	1.2	6	35	345	20	0.054	Production
VO01032	32	1.2	6	35	365	20	0.057	Production
VO01035	35	1.2	6	40	395	20	0.062	Production
VO01038	38	1.2	6	40	385	20	0.066	Production
VO01040	40	1.2	6	50	405	20	0.086	Production
VO01045	45	1.2	6	50	450	20	0.095	Production
VO01050	50	1.2	5	60	495	20	0.104	Good
VO01051	51	1.2	5	60	505	20	0.106	Good
VO01060	60	1.2	4.5	70	640	20	0.131	Production
VO01063	63	1.2	4.5	70	670	20	0.182	Good
VO01065	65	1.2	4.5	70	690	20	0.187	Production
VO01070	70	1.2	4.5	80	845	20	0.202	Good
VO01075	75	1.2	4	80	900	20	0.215	Production
VO01076	76	1.2	4	90	910	20	0.217	Good
VO01080	80	1.2	3.5	90	955	20	0.227	Good
VO01090	90	1.2	3	100	1070	20	0.285	Good
VO01100	100	1.2	2.5	120	1185	15	0.313	Production
VO01102	102	1.2	2.5	120	1205	15	0.319	Good
VO01110	110	1.2	2.5	130	1295	15	0.343	Good
VO01120	120	1.2	2	140	1410	15	0.372	Production
VO01127	127	1.2	2	150	1630	15	0.392	Good
VO01130	130	1.2	2	150	1670	15	0.401	Production
VO01140	140	1.2	1.5	160	1795	15	0.645	Production
VO01150	150	1.2	1.5	170	1915	15	0.688	Production
VO01152	152	1.2	1.5	170	1940	15	0.696	Good
VO01160	160	1.2	1.5	180	2040	15	0.731	Production
VO01170	170	1.2	1	200	1950	15	0.922	Production
VO01180	180	1.2	1	210	2060	15	0.973	Production
VO01200	200	1.2	1	230	2285	15	1.08	Production
VO01203	203	1.2	0.5	230	2315	15	1.09	Production
VO01205	205	1.2	0.5	230	2340	15	1.10	Production
VO01220	220	1.2	0.5	260	2505	10	1.18	Production
VO01228	228	1.2	0.5	260	2595	10	1.22	Production
VO01250	250	1.2	0.5	290	2840	10	1.33	Production
VO01254	254	1.2	0.5	290	2885	10	1.35	Production
VO01265	265	1.2	0.5	300	3380	10	1.41	Production
VO01279	279	1.2	0.5	320	3555	10	1.48	Production
VO01305	305	1.2	0.5	350	3880	10	1.61	Production
VO01355	355	1.2	0.5	410	4505	10	1.33	Production
VO01406	406	1.2	0.4	500	5145	10	1.73	Production
VO01500	500	1.2	0.3	600	7690	6	1.57	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 or email us at sales@megaflex.co.uk for further details!
