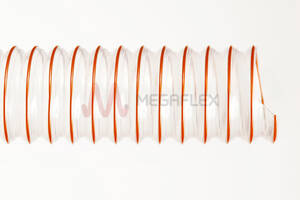

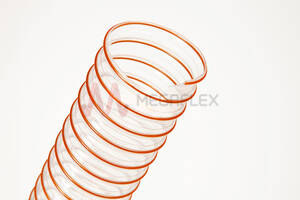

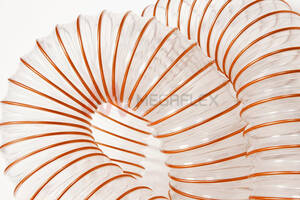

Vulcano R FR Ester-PU Ducting with PU-coated Coppered Steel Helix (Medium Duty)

Product Code: VRFR

Vulcano R FR - PU Hose for Dust Extraction | Flexible, Durable

Description

Ideal for the suction of chips, sawdust, and abrasive dust in the dust extraction sector, the Vulcano R FR polyurethane hose is also perfectly suited for the woodworking industry, specifically for the handling of sawdust.

Technical Specifications

Material: An ester-based Polyurethane, reinforced with a TPU-coated coppered steel spiral.
Wall Thickness: Ranges from 0.4mm to 0.75mm, allowing for a balance between lightness and durability.

Properties

Flexibility: Very light and easy to handle, this hose offers exceptional flexibility.
Mechanical Performance: The innovative TPU coating on the spiral enhances its ability to endure repeated bending, making it ideal for dynamic applications.
Safety: Halogen-free and free from phthalates, durable against mineral oils, weathering, UV rays, and ozone. Conforms to RoHS regulations.

Standards

Can be configured for electrical bonding by grounding the steel spiral, achieving an electrical resistance of R ≤ 10² Ohm/m as per ISO 8031 and ATEX Directives.
Compliant with the RoHS 2011/65/EU Directive and REACH Regulation (1907/2006).

Optional: Accessories and Fittings

Available in bacterial-resistant or permanent antistatic to (R ≤ 10⁹ Ohm/m.) versions upon request.
Single bridge clamps for secure connections.

Bore Finish: Corrugated

Temperature

-40°C to 90°C

Applications

Dust extraction industry
Sawmills
Woodworking plants
Protection sleeve
Small street sweepers
Medium-sized street sweepers

Suitable Media

Abrasive dust
Air
Fumes
Wood shavings
Sawdust
Wood chips

Certification

ATEX DIRECTIVE 2014/34/UE and 99/92/EC
ISO 8031
RoHS
REACH

Electrical Resistance

Conductive to 10² Ω/m by grounding the copper braid wire.

Construction

Wall: Ester-TPU
Helix: TPU-coated Steel

Available Colours

Clear

Part	Inner Diameter	Wall Thickness	Vacuum Rating	Bend Radius	Weight	Length	Volume	Availability

VRFR025	25	0.4	2	30	140	20	0.048	Production
VRFR030	30	0.4	2	30	160	20	0.055	Production
VRFR032	32	0.4	2	30	170	20	0.058	Production
VRFR035	35	0.4	2	30	190	20	0.065	Production
VRFR038	38	0.4	2	30	175	20	0.086	Good
VRFR040	40	0.4	2	32	185	20	0.09	Good
VRFR045	45	0.4	2	36	205	20	0.099	Production
VRFR048	48	0.4	2	36	215	20	0.104	Production
VRFR050	50	0.4	2	40	225	20	0.108	Production
VRFR051	51	0.4	2	40	225	20	0.110	Good
VRFR060	60	0.4	1.7	50	260	20	0.134	Good
VRFR063	63	0.4	1.7	55	275	20	0.187	Good
VRFR065	65	0.4	1.7	56	280	20	0.192	Production
VRFR070	70	0.43	1.7	60	375	20	0.205	Good
VRFR075	75	0.43	1.7	65	400	20	0.218	Production
VRFR076	76	0.43	1.7	65	405	20	0.220	Good
VRFR080	80	0.43	1.6	65	420	20	0.230	Good
VRFR090	90	0.43	1.6	75	470	20	0.288	Good
VRFR100	100	0.53	1.3	85	520	15	0.317	Production
VRFR102	102	0.53	1.3	85	530	15	0.323	Good
VRFR110	110	0.53	1.2	90	570	15	0.346	Good
VRFR115	115	0.53	1	100	595	15	0.36	Production
VRFR120	120	0.53	1	100	620	15	0.374	Good
VRFR122	122	0.53	1	100	630	15	0.380	Production
VRFR127	127	0.63	1	105	755	15	0.395	Good
VRFR130	130	0.63	0.8	105	770	15	0.403	Good
VRFR140	140	0.63	0.8	115	830	15	0.648	Good
VRFR150	150	0.63	0.8	125	885	15	0.691	Production
VRFR152	152	0.63	0.8	125	895	15	0.700	Good
VRFR160	160	0.63	0.7	130	940	15	0.734	Good
VRFR180	180	0.63	0.5	150	1250	15	0.973	Good
VRFR200	200	0.63	0.4	165	1385	15	1.08	Production
VRFR203	203	0.63	0.4	165	1405	15	1.09	Good
VRFR220	220	0.63	0.4	185	1515	10	1.18	Production
VRFR228	228	0.63	0.4	185	1570	10	1.22	Production
VRFR250	250	0.65	0.4	210	1870	10	1.33	Production
VRFR254	254	0.65	0.4	210	1900	10	1.35	Good
VRFR265	265	0.65	0.4	220	1980	10	1.41	Production
VRFR279	279	0.65	0.4	230	2080	10	1.48	Production
VRFR305	305	0.65	0.3	250	2270	10	1.61	Good
VRFR315	315	0.65	0.3	275	2345	10	1.66	Production
VRFR356	356	0.65	0.3	300	2645	10	2.93	Production
VRFR400	400	0.75	0.3	350	3105	10	3.30	Production
VRFR406	406	0.75	0.3	350	3150	10	3.34	Production
VRFR450	450	0.754	0.2	400	4095	10	3.71	Production
VRFR500	500	0.75	0.1	450	4530	6	1.59	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 or email us at sales@megaflex.co.uk for further details!
