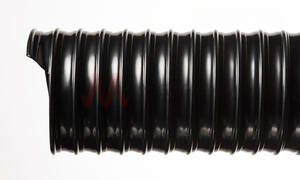

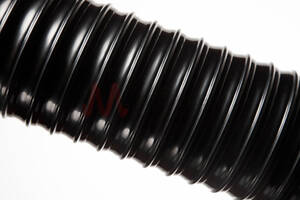

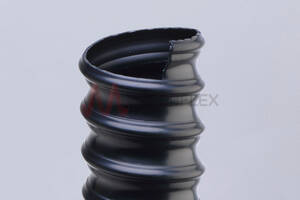

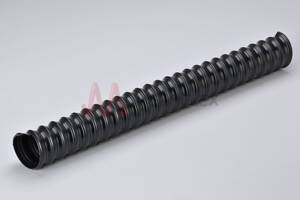

Vulcano 09 EL Black Ester-PU Ducting with PU-coated Steel Helix (Heavy Duty)

Product Code: EB01

Vulcano 09 EL Heavy Duty Ducting ATEX Compliant Black EB01

Description

Ideal for delivery of highly abrasive media as powders, granules of different nature at high speed. The hose meets the requirements of ATEX Directives, in potentially explosive environments.

Properties
Electrically conductive Ester based polyurethane hose reinforced with a PU coated steel wire to ensure a high adhesion. Constant wall thickness of 0.9mm for the whole diameters range. Raw material with permanent electrical conductive features R<10⁴ Ohm/metre according to ISO 8031. Nearly smooth bore to ensure optimum flow characteristics. Extremely flexible, very good resistance to abrasion, most chemicals, UV rays, ozone. Halogen free conform to RoHS Regulation. The hose is capable of transferring electrostatic charges when installed on properly earthed systems and becomes conductive R<10² Ohm/m by earthing the spiral. Bore Finish: Corrugated

Temperature

-40°C to 90°C, intermittently as high as 125°C

Suitable Media

Pellets
Chips
Sawdust
Fumes
Abrasive dust
Abrasive powders

Certification

ATEX DIRECTIVE 2014/34/UE and 99/92/EC
ISO 8031
RoHS
REACH

Electrical Resistance

Conductive to 10⁴ Ω/m by grounding the copper braid wire.

Applications

Suction systems
Ceramics
Wood industry

Construction

Wall: Ester-TPU
Helix: TPU coated steel

Available Colours

Black

Part	Inner Diameter	Wall Thickness	Vacuum Rating	Bend Radius	Weight	Length	Volume	Availability

EB01038	38	0.9	0.3	40	295	20	0.063	Production
EB01040	40	0.9	0.3	50	310	20	0.066	Production
EB01045	45	0.9	0.3	50	385	20	0.094	Production
EB01050	50	0.9	0.3	60	425	20	0.103	Production
EB01051	51	0.9	0.3	60	435	20	0.104	Production
EB01060	60	0.9	0.3	70	505	20	0.129	Production
EB01063	63	0.9	0.3	70	530	20	0.179	Production
EB01065	65	0.9	0.3	70	545	20	0.184	Production
EB01070	70	0.9	0.3	80	655	20	0.202	Production
EB01075	75	0.9	0.3	90	695	20	0.215	Production
EB01076	76	0.9	0.3	90	705	20	0.218	Production
EB01080	80	0.9	0.3	90	740	20	0.228	Production
EB01090	90	0.9	0.3	100	830	20	0.285	Production
EB01100	100	0.9	0.3	120	915	15	0.314	Production
EB01102	102	0.9	0.3	120	930	15	0.320	Production
EB01110	110	0.9	0.3	130	1000	15	0.343	Production
EB01115	115	0.9	0.3	135	1045	15	0.357	Production
EB01120	120	0.9	0.3	140	1090	15	0.372	Production
EB01127	127	0.9	0.3	150	1335	15	0.392	Production
EB01130	130	0.9	0.3	150	1365	15	0.400	Production
EB01140	140	0.9	0.3	160	1465	15	0.644	Production
EB01150	150	0.9	0.3	170	1565	15	0.687	Production
EB01152	152	0.9	0.3	170	1585	15	0.696	Production
EB01160	160	0.9	0.3	180	1665	15	0.730	Production
EB01180	180	0.9	0.3	210	1680	15	0.973	Production
EB01200	200	0.9	0.3	230	1860	15	1.08	Production
EB01203	203	0.9	0.3	230	1885	15	1.09	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 or email us at sales@megaflex.co.uk for further details!
