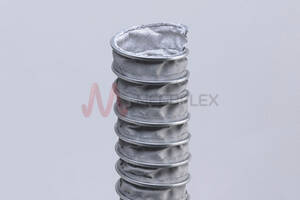

Eolo Clip 400C - Ultra-High Temperature Grey Coated Fibreglass Ducting Reinforced with Stainless Steel Wire Helix for Furnace Exhaust
Product Code: H401
Description
Applications
Where it is necessary a flame retardant hose for suction of smokes, vapours, welding gasses, furnace exhaust, dust and fibres.
Technical

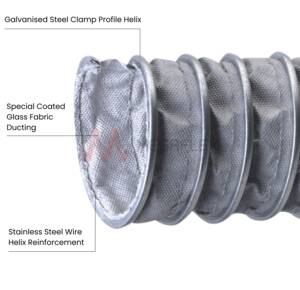

Special coated glass fabric duct reinforced with a stainless steel wire. Galvanized steel clamp profile
Properties
Highly flexible and robust, very high temperature resistant up to 400°C, extremely compressible ca. 3:1, really good in bending, external steel helix protects against abrasion, flame retardant according to DIN 4102-B1
Standards
Accessories
Temperature
- -60°C to 400°C
Suitable Media
- Vapours
- Exhaust smokes
- Welding gas
- Furnace exhaust
- Dust
- Fibres
Construction
- Wall: Glass fabric
- Helix: Steel
- Surface Finish: Corrugated
Applications
- Ventilation systems
Certification
- DIN 4102-B1
Available Colours
- Grey
| Part | Inner Diameter | Vacuum Rating | Bend Radius | Weight | Length | Availability |
|---|---|---|---|---|---|---|
| H401050 | 50 | 3.26 | 30 | 400 | 6 | Production |
| H401060 | 60 | 2.24 | 36 | 500 | 6 | Production |
| H401065 | 65 | 1.94 | 39 | 500 | 6 | Production |
| H401070 | 70 | 1.63 | 42 | 500 | 6 | Production |
| H401075 | 75 | 1.43 | 45 | 600 | 6 | Production |
| H401080 | 80 | 1.27 | 48 | 600 | 6 | Production |
| H401090 | 90 | 1.02 | 54 | 600 | 6 | Production |
| H401100 | 100 | 0.816 | 60 | 600 | 6 | Production |
| H401110 | 110 | 0.673 | 66 | 700 | 6 | Production |
| H401120 | 120 | 0.571 | 72 | 700 | 6 | Production |
| H401125 | 125 | 0.510 | 75 | 800 | 6 | Production |
| H401130 | 130 | 0.479 | 78 | 800 | 6 | Production |
| H401140 | 140 | 0.418 | 84 | 800 | 6 | Production |
| H401150 | 150 | 0.367 | 90 | 900 | 6 | Production |
| H401160 | 160 | 0.316 | 96 | 900 | 6 | Production |
| H401170 | 170 | 0.286 | 102 | 900 | 6 | Production |
| H401175 | 175 | 0.265 | 105 | 1000 | 6 | Production |
| H401180 | 180 | 0.255 | 108 | 1000 | 6 | Production |
| H401200 | 200 | 0.204 | 120 | 1200 | 6 | Production |
| H401215 | 215 | 0.184 | 129 | 1300 | 6 | Production |
| H401225 | 225 | 0.163 | 135 | 1400 | 6 | Production |
| H401250 | 250 | 0.133 | 175 | 1600 | 6 | Production |
| H401275 | 275 | 0.112 | 193 | 1900 | 6 | Production |
| H401300 | 300 | 0.092 | 210 | 2100 | 6 | Production |
| H401315 | 315 | 0.082 | 221 | 2100 | 6 | Production |
| H401325 | 325 | 0.082 | 228 | 2200 | 6 | Production |
| H401350 | 350 | 0.071 | 245 | 2500 | 6 | Production |
| H401375 | 375 | 0.061 | 263 | 2900 | 6 | Production |
| H401400 | 400 | 0.051 | 280 | 3100 | 6 | Production |
| H401450 | 450 | 0.041 | 360 | 3600 | 6 | Production |
| H401500 | 500 | 0.031 | 400 | 4100 | 6 | Production |
| H401600 | 600 | 0.020 | 480 | 5100 | 6 | Production |
| H401700 | 700 | 0.020 | 560 | 6000 | 6 | Production |
| H401800 | 800 | 0.010 | 640 | 6900 | 6 | Production |
| H401900 | 900 | 0.010 | 720 | 7800 | 6 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
