Applications
Civil and naval conditioning plants, ventilation systems, suction of fumes, vapours, powders, gas.
Technical

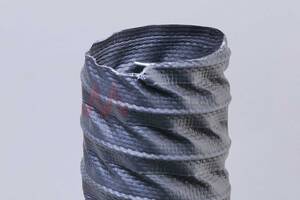

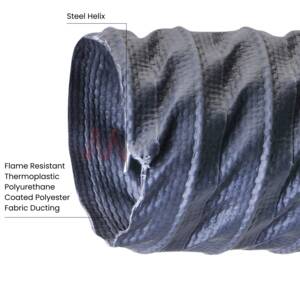

Flexible duct made in flame resistant PU coated polyester fabric and reinforced by steel helix welded between the two layers. Flame retardant according to UL 94 V0, RoHS 2011/65/EU Directive, REACH Regulation (1907/2006). SILICON FREE.
Properties
Standards
Accessories
Datasheet Available
Temperature Range
-40°C to 180°C (intermittently up to 200°C)
Colour: Red
This product is part of the "Eolo Temperature" group of products, see the range here:
| Part | ID ⌀ | Weight | Bend Radius | Coil Length | Volume |
|---|---|---|---|---|---|
| No. | |||||
| H101040 | 40 | 130 | 20 | 10 | 0.002 |
| H101051 | 51 | 150 | 26 | 10 | 0.003 |
| H101060 | 60 | 180 | 30 | 10 | 0.004 |
| H101063 | 63 | 185 | 32 | 10 | 0.004 |
| H101070 | 70 | 210 | 35 | 10 | 0.005 |
| H101076 | 76 | 225 | 38 | 10 | 0.006 |
| H101080 | 80 | 235 | 40 | 10 | 0.007 |
| H101090 | 90 | 265 | 45 | 10 | 0.009 |
| H101102 | 102 | 310 | 51 | 10 | 0.011 |
| H101110 | 110 | 335 | 55 | 10 | 0.013 |
| H101115 | 115 | 350 | 58 | 10 | 0.014 |
| H101120 | 120 | 365 | 60 | 10 | 0.016 |
| H101127 | 127 | 385 | 64 | 10 | 0.017 |
| H101130 | 130 | 395 | 65 | 10 | 0.018 |
| H101140 | 140 | 425 | 70 | 10 | 0.021 |
| H101152 | 152 | 460 | 76 | 10 | 0.025 |
| H101160 | 160 | 470 | 80 | 10 | 0.027 |
| H101180 | 180 | 530 | 90 | 10 | 0.034 |
| H101203 | 203 | 595 | 102 | 10 | 0.044 |
| H101228 | 228 | 670 | 114 | 10 | 0.055 |
| H101254 | 254 | 920 | 127 | 10 | 0.068 |
| H101279 | 279 | 1005 | 140 | 10 | 0.082 |
| H101305 | 305 | 1100 | 153 | 10 | 0.097 |
| H101315 | 315 | 1135 | 158 | 10 | 0.104 |
| H101330 | 330 | 1190 | 165 | 10 | 0.114 |
| H101356 | 356 | 1280 | 178 | 10 | 0.132 |
| H101406 | 406 | 1460 | 203 | 10 | 0.171 |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
Please click here for full terms and conditions.
Please contact our sales office on 01636816612 for further details!
