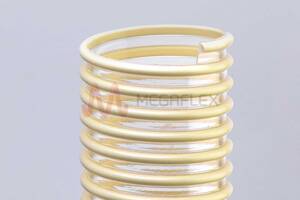

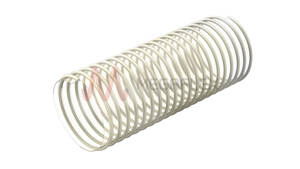

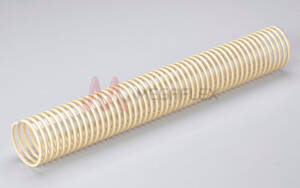

Eolo PU AF AS Ester-TPU Ducting with Ivory Rigid PVC Helix Flame Retardant
Product Code: FF02
Description
Introducing Eolo PU AF AS transparent anti-static ester-based TPU hose, flame retardant according to UL 94 V2, with an ivory anti-shock rigid PVC spiral. This hose is completely smooth inside, very flexible and light, and offers really good resistance to abrasion and torsion. Crafted with copper wire, it can be made electrically bonded by earthing the copper spiral. The electrical resistance R ≤ 102 Ohm/m. Designed for the suction of abrasive media such as powders, granulates, wood shavings, and dust, and is ideal where good self-extinguishing properties are required.
Key Features:
- Applications: Suction of abrasive media in various industries, particularly where flame retardant properties are essential.
- Mediums: Suitable for powders, granulates, wood shavings, and dust.
- Properties: Flame retardant, self-extinguishing, abrasion and torsion resistant, flexible, light, smooth inside.
- Diameter Range: 19.1mm to 160mm.
Temperature
- -40°C to 80°C
Applications
- Woodworking
- Carpentry
- Dedusting
- Small industrial vacuum cleaners
- Protective sleeving
- Flame retardant applications
Suitable Media
- Powders
- Granulates
- Wood shavings
- Dust
- Chips
- Abrasive material
- Granules
- Air
- Fumes
Electrical Resistance
- Conductive to 102 Ω/m by grounding the copper braid wire.
Certification
- UL 94 V2
- RoHS
- REACH

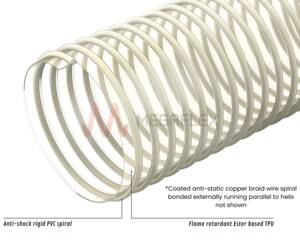

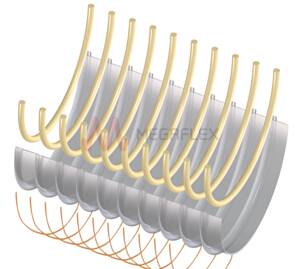

Construction
- Wall: Ester-TPU
- Helix: PVC
Available Colours
- Clear
- Ivory
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Vacuum Rating | Bend Radius | Weight | Length | Volume | Availability |
|---|---|---|---|---|---|---|---|---|---|
| FF02019 | 19.1 | 24.7 | 0.4 | 2.5 | 25 | 110 | 20 | 0.022 | Production |
| FF02020 | 20 | 25.6 | 0.4 | 2.5 | 25 | 120 | 20 | 0.027 | Production |
| FF02030 | 30 | 35.6 | 0.4 | 2.5 | 35 | 170 | 20 | 0.051 | Production |
| FF02052 | 50.8 | 57.6 | 0.5 | 2 | 70 | 350 | 20 | 0.111 | Production |
| FF02060 | 60 | 67.6 | 0.5 | 1.6 | 80 | 490 | 20 | 0.130 | Production |
| FF02063 | 63.5 | 71.3 | 0.5 | 1.6 | 80 | 540 | 20 | 0.183 | Production |
| FF02076 | 76.2 | 84.6 | 0.6 | 1.6 | 100 | 640 | 30 | 0.365 | Production |
| FF02080 | 80 | 89 | 0.6 | 1.6 | 110 | 690 | 30 | 0.384 | Production |
| FF02090 | 90 | 99.2 | 0.6 | 1.4 | 125 | 800 | 30 | 0.429 | Production |
| FF02160 | 160 | 174 | 0.7 | 0.7 | 220 | 2070 | 20 | 0.893 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
