Eolo PU EST ASW Anti-static Ester-TPU Ducting with Rigid PVC Helix

Product Code: OU87

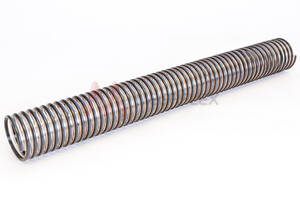

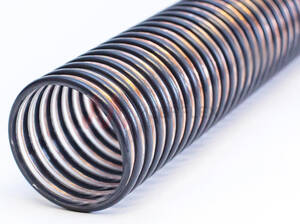

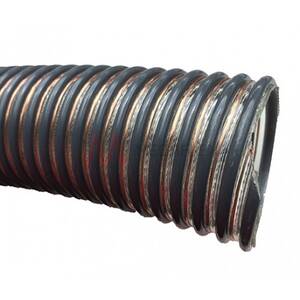

Anti-Static Ester-Based TPU Hose - Eolo PU EST ASW

Description

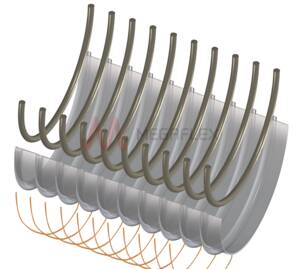

Introducing Eolo PU EST ASW Anti-Static — a specialised hose with a wall made of special TPU (Thermoplastic Polyurethane) based on ester with permanent antistatic properties (R<10⁹ Ohm/m). This feature facilitates the continuous dissipation of electrostatic charges, enhancing the flow performance as the media transported easily detaches from the hose wall. Crafted with copper wire, it can be made electrically bonded by earthing the copper spiral. The electrical resistance R ≤ 10² Ohm/m. Reinforced with a shock-resistant rigid PVC helix, featuring a completely smooth internal surface and a corrugated exterior. It offers good resistance to abrasion and bending with a wall thickness ranging from 0.4 to 0.8 mm.

Key Features:

Applications: Suitable for the suction of dust, chips, granules, and abrasive substances in various industries.
Properties: Antistatic, good abrasion and bending resistance, smooth internal surface for improved flow, corrugated exterior.
Material: Wall made of special TPU based on ester, reinforced with rigid PVC spiral.
Size Range: Diameters from 13 to 300 mm.

Choose Eolo PU EST ASW Anti-static for efficient and safe handling of abrasive materials in industrial applications. Bore Finish: Smooth

Temperature

-40°C to 80°C

Suitable Media

Dust
Chips
Abrasive material
Granules
Air
Fumes

Applications

Woodworking
Carpentry
Dedusting
Small industrial vacuum cleaners

Electrical Resistance

Conductive to 10² Ω/m by grounding the copper braid wire.

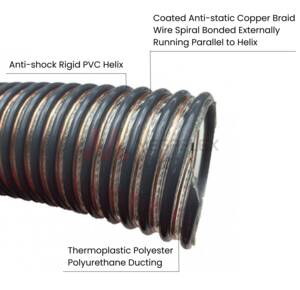

Construction

Wall: Ester-TPU
Helix: PVC

Available Colours

Clear
Dark Grey

Certification

RoHS
REACH

Part	Inner Diameter	Outer Diameter	Wall Thickness	Vacuum Rating	Bend Radius	Weight	Length	Volume	Colour	Availability

OU87013	13	18.6	0.4	2.5	20	80	20	0.013	Clear, Grey	Production
OU87016	16	21.6	0.4	2.5	25	100	20	0.018	Clear, Grey	Production
OU87019	19.1	24.7	0.4	2.5	25	120	20	0.022	Clear, Grey	Production
OU87020	20	25.6	0.4	2.5	25	120	20	0.025	Clear, Grey	Good
OU87022	22	27.6	0.4	2.5	28	130	20	0.028	Clear, Grey	Production
OU87025	25	30.6	0.4	2.5	30	150	20	0.034	Clear, Grey	Good
OU87030	30	35.6	0.4	2.5	35	170	20	0.051	Clear, Grey	Good
OU87032	31.8	37.6	0.4	2	35	190	20	0.054	Clear, Grey	Good
OU87035	35	41	0.5	2	45	220	20	0.059	Clear, Grey	Good
OU87038	38.1	44.3	0.5	2	50	250	20	0.064	Clear, Grey	Good
OU87040	40	46.2	0.5	2	60	260	20	0.067	Clear, Grey	Good
OU87045	45	51.4	0.5	2	65	300	20	0.099	Clear, Grey	Good
OU87050	50	56.8	0.5	2	70	350	20	0.109	Clear, Grey	Production
OU87052	50.8	57.6	0.5	2	70	360	20	0.111	Clear, Grey	Good
OU87055	55	62.2	0.5	2	75	420	20	0.119	Clear, Grey	Production
OU87060	60	67.6	0.5	1.6	80	500	20	0.173	Clear, Grey	Good
OU87063	63.5	71.3	0.5	1.6	80	550	20	0.183	Clear, Grey	Good
OU87065	65	72.8	0.5	1.6	90	560	20	0.186	Clear, Grey	Production
OU87070	70	78.4	0.6	1.6	95	600	30	0.339	Clear, Grey	Good
OU87076	76.2	84.6	0.6	1.6	100	650	30	0.365	Clear, Grey	Good
OU87080	80	89	0.6	1.6	110	690	30	0.384	Clear, Grey	Good
OU87090	90	99.2	0.6	1.4	125	800	30	0.429	Clear, Grey	Good
OU87100	100	110	0.6	1.3	140	870	30	0.631	Clear, Grey	Good
OU87102	102	112	0.6	1.3	140	880	30	0.643	Clear, Grey	Good
OU87110	110	120	0.6	1.2	150	1010	30	0.692	Clear, Grey	Good
OU87120	120	131	0.6	1	160	1210	30	0.753	Clear, Grey	Good
OU87127	127	138	0.6	1	170	1270	30	0.794	Clear, Grey	Good
OU87130	130	141	0.7	0.9	170	1460	20	0.611	Clear, Grey	Good
OU87140	140	151	0.7	0.9	180	1560	20	0.654	Clear, Grey	Good
OU87150	152	163	0.7	0.8	200	1620	20	0.939	Clear, Grey	Good
OU87152	152	164	0.7	0.8	200	1630	20	0.840	Clear, Grey	Good
OU87160	160	174	0.7	0.7	220	2080	20	0.893	Clear, Grey	Good
OU87180	180	194	0.7	0.4	250	2330	20	1.49	Clear, Grey	Good
OU87200	200	214	0.7	0.4	260	2400	20	1.65	Clear, Grey	Good
OU87203	203	218	0.7	0.4	260	2440	20	1.67	Clear, Grey	Good
OU87250	250	266	0.8	0.4	300	3620	10	1.36	Clear, Grey	Good
OU87300	300	316	0.8	0.3	350	4500	10	1.62	Clear, Grey	Good

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 or email us at sales@megaflex.co.uk for further details!
