Eolo PU Food AS Antistatic Ether-PU Ducting with Rigid PVC Helix (Light Duty)

Product Code: EU02

Eolo Antistatic PU Hose - Food-Grade, Flexible | Agriculture

Description

Suction of dry food such as grains, animal feed, sugar, flour, seeds etc. Suitable for fatty foods, but not for milk or dairy products.

Technical
Ether based PU wall, food grade, with an anti-shock rigid PVC spiral. Completely smooth inside, corrugated outside.

Properties
Light duty product with a PU wall thickness from 0.4 to 0.8 mm, light, flexible and easy to bend extremely resistant to abrasion and repetative flexing, this hose features high mechanical properties. Excellent resistance to microbes, hydrolysis, ozone, weather conditions, most chemicals. Halogen free and conforms to RoHS as well as free from phthalates.
Manufactured in antistatic by adding a copper wire. By earthing the copper wire, the duct becomes electrically bonded. The electrical resistance R ≤ 10² Ohm/m is according to ISO 8031 - ATEX Directives Bore Finish: Smooth

Food Quality

FDA regulations (Title 21 CFR 177.2600 Part D for dry foods).
EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
EU Regulation 10/2011 Food Simulant D2: Foods with free fats at the surface.
EU Regulation 10/2011 Food Simulant E: Testing specific migration into dry foods.
Suitable for alcohol up to 20%.

Temperature

-40°C to 90°C, intermittently as high as 125°C

Certification

EU 10/2011
FDA 21 CFR 177.2600
ATEX DIRECTIVE 2014/34/UE and 99/92/EC
ISO 8031
RoHS
REACH

Suitable Media

Flour
Seeds
Powders
Sugar
Granules
Foodstuff
Fatty foods

Applications

Combined machines
Agricultural vehicles
Seed drills
Food industry

Electrical Resistance

Conductive to 10² Ω/m by grounding the copper braid wire.

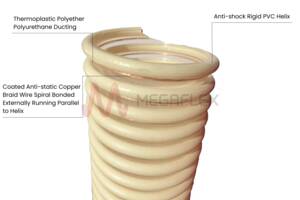

Construction

Wall: Ether-TPU
Helix: PVC

Available Colours

Clear
Ivory

Part	Inner Diameter	Outer Diameter	Wall Thickness	Vacuum Rating	Bend Radius	Weight	Length	Volume	Availability

EU02013	13	18.6	0.4	2.5	20	109	20	0.013	Production
EU02016	16	21.6	0.4	2.5	25	136	20	0.018	Production
EU02019	19.1	24.7	0.4	2.5	25	153	20	0.022	Production
EU02020	20	25.6	0.4	2.5	25	164	20	0.024	Good
EU02022	22	27.6	0.4	2.5	28	171	20	0.028	Production
EU02025	25	30.6	0.4	2.5	30	196	20	0.034	Good
EU02030	30	35.6	0.4	2.5	35	225	20	0.051	Good
EU02032	31.8	37.6	0.4	2	35	249	20	0.054	Good
EU02035	35	41	0.5	2	45	265	20	0.059	Good
EU02038	38.1	44.3	0.5	2	50	300	20	0.064	Good
EU02040	40	46.2	0.5	2	60	323	20	0.067	Good
EU02045	45	51.4	0.5	2	65	362	20	0.099	Good
EU02050	50	56.8	0.5	2	70	419	20	0.109	Production
EU02052	50.8	57.6	0.5	2	70	420	20	0.111	Good
EU02055	55	62.2	0.5	2	75	486	20	0.119	Production
EU02060	60	67.6	0.5	1.6	80	573	20	0.130	Good
EU02063	63.5	71.3	0.5	1.6	80	618	20	0.183	Good
EU02065	65	72.8	0.5	1.6	90	630	20	0.186	Production
EU02070	70	78.4	0.6	1.6	95	676	30	0.339	Good
EU02076	76.2	84.6	0.6	1.6	100	734	30	0.365	Good
EU02080	80	89	0.6	1.6	110	778	30	0.384	Good
EU02090	90	99.2	0.6	1.4	125	889	30	0.429	Good
EU02100	100	110	0.6	1.3	140	960	30	0.631	Good
EU02102	102	112	0.6	1.3	140	983	30	0.643	Good
EU02110	110	120	0.6	1.2	150	1121	30	0.692	Good
EU02120	120	131	0.6	1	160	1322	30	0.753	Good
EU02127	127	138	0.6	1	170	1400	30	0.794	Good
EU02130	130	141	0.7	0.9	170	1583	20	0.611	Good
EU02140	140	151	0.7	0.9	180	1694	20	0.654	Good
EU02150	152	163	0.7	0.8	200	1767	20	0.939	Good
EU02152	152	164	0.7	0.8	200	1778	20	0.945	Good
EU02160	160	174	0.7	0.7	220	2226	20	0.893	Good
EU02180	180	194	0.7	0.4	250	2498	20	1.49	Good
EU02200	200	214	0.7	0.4	260	2590	20	1.65	Good
EU02203	203	218	0.7	0.4	260	2634	20	1.67	Production
EU02250	250	266	0.8	0.4	300	3820	10	1.36	Good
EU02300	300	316	0.8	0.3	350	4750	10	1.62	Good
EU02305	305	321	0.8	0.3	350	4825	10	1.64	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 or email us at sales@megaflex.co.uk for further details!
