FlexFlyte L1 Double Ply Neoprene-coated Glass Fibre Fabric Ducting with Spring Steel Helix
Product Code: FFL1
Description

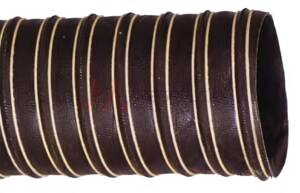

Lightweight, flexible, smooth bore 2-ply duct made from an outer layer of neoprene-coated and impregnated glass fibre fabric, featuring an outer double cord of neoprene-coated glass fibre. Supported by a high tensile spring steel helix, it is lined internally with a neoprene-coated glass fibre fabric to provide a smooth internal bore.
Features and Applications
Our neoprene ducting is designed for conveying hot or cold air, chemical fumes, industrial fumes, and non-aromatic solvents. Its construction ensures good chemical resistance in the vapour phase, making it suitable for numerous industrial applications.
Properties
This ducting is celebrated for its lightweight nature, easy handling, axial compressibility, and high flexibility. It maintains cross-sectional area on sharp bends and offers good low temperature flexibility. The duct provides excellent resistance to many oils, greases, solvents, and industrial chemicals in the vapour phase at moderate concentrations.
Flexflyte L1 can be ordered in lengths up to 4 metres with straight, tapered, or expanded cuffs for secure and leak-tight connections to meet your specific application requirements. Bore Finish: Corrugated
Temperature
- -50°C to 150°C
Suitable Media
- Chemical fumes
- Industrial fumes
- Non-aromatic solvents
- Cold air
- Non-abrasive powders
- Non-abrasive dust
Construction
- Wall: Neoprene-coated Glass Fibre Fabric
- Reinforcement: Neoprene-coated Glass Fibre Cord
- Helix: Spring Steel
Certification
- BS476 parts 6 & 7 & 20 with a fire resistance time of 60 minutes
- RoHS
- REACH
Applications
- Aerospace
- Automotive
- Materials drying
Available Colours
- Black with White Cord
| Part | Inner Diameter | Working Pressure | Vacuum Rating | Bend Radius | Weight | Colour |
|---|---|---|---|---|---|---|
| FFL1038 | 38 | 1.7 | 4.28 | 25 | 225 | Black |
| FFL1051 | 51 | 1.7 | 4.28 | 25 | 290 | Black |
| FFL1063 | 63 | 1.35 | 3.40 | 32 | 360 | Black |
| FFL1076 | 76 | 1.35 | 3.40 | 32 | 465 | Black |
| FFL1102 | 102 | 1.03 | 2.58 | 38 | 605 | Black |
| FFL1127 | 127 | 0.68 | 2.18 | 44 | 865 | Black |
| FFL1152 | 152 | 0.5 | 1.70 | 51 | 1100 | Black |
| FFL1178 | 178 | 0.45 | 1.02 | 64 | 1285 | Black |
| FFL1203 | 203 | 0.3 | 0.680 | 70 | 1430 | Black |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
