FlexFlyte L8 Double Ply Silicone-coated Glass Fabric Ducting with Spring Steel Wire Helix
Product Code: FFL8
Description

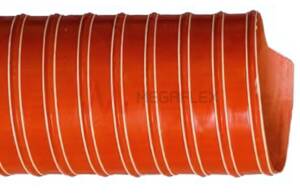

A lightweight, flexible, smooth bore 2-ply duct made from an outer layer of silicone-coated impregnated glass fibre fabric, featuring an outer double cord of silicone-coated glass fibre. This is supported by a high tensile spring steel helix and lined internally with a woven glass fibre material coated and impregnated with silicone on both sides to provide a smooth internal bore.
Features and Applications
Designed for light service conditions, our silicone-coated 2-ply duct is perfect for conveying chemical fumes, industrial fumes used in aerospace applications. Its construction ensures high temperature resistance, good chemical resistance, and a smooth bore for optimal airflow.
Properties
Flexflyte L8 is celebrated for its lightweight nature and ease of handling. Its construction makes it highly flexible, maintaining cross-sectional area on sharp bends. It offers fair resistance to many oils, greases, solvents, and industrial chemicals in the vapour phase at moderate concentrations. Operational at wide temperature extremes, this duct boasts excellent ageing characteristics and low-temperature flexibility. Our silicone-coated ducting is reliable, providing the perfect solution for demanding environments where durability, chemical resistance, and temperature resilience are essential.
Can be ordered in lengths up to 4 metres with straight, tapered, or expanded cuffs for secure and leak-tight connections to meet your specific application requirements. Bore Finish: Corrugated
Temperature
- -60°C to 300°C
Construction
- Wall: Silicone-coated Glass Fibre Fabric
- Reinforcement: Silicone-coated Glass Fibre Cord
- Helix: Spring Steel
Suitable Media
- Chemical fumes
- Industrial fumes
- Cold air
- Non-abrasive powders
- Non-abrasive dust
Certification
- BS476 parts 6 & 7 & 20 with a fire resistance time of 60 minutes
- RoHS
- REACH
Applications
- Aerospace
- Automotive
- Materials drying
Available Colours
- Red with White Cord
| Part | Inner Diameter | Working Pressure | Vacuum Rating | Bend Radius | Weight | Colour |
|---|---|---|---|---|---|---|
| FFL8025 | 25 | 2.05 | 5.17 | 20 | 170 | Red |
| FFL8038 | 38 | 1.7 | 4.28 | 20 | 250 | Red |
| FFL8044 | 44 | 1.7 | 4.28 | 26 | 285 | Red |
| FFL8051 | 51 | 1.7 | 4.28 | 26 | 320 | Red |
| FFL8064 | 64 | 1.35 | 3.40 | 26 | 400 | Red |
| FFL8076 | 76 | 1.35 | 3.40 | 32 | 500 | Red |
| FFL8102 | 102 | 1.03 | 2.58 | 38 | 665 | Red |
| FFL8127 | 127 | 0.68 | 2.18 | 45 | 945 | Red |
| FFL8152 | 152 | 0.5 | 1.70 | 51 | 1200 | Red |
| FFL8178 | 178 | 0.45 | 1.02 | 58 | 1400 | Red |
| FFL8203 | 203 | 0.3 | 0.680 | 64 | 1595 | Red |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
