FlexFlyte U1 Single Ply Neoprene-coated Glass Fibre Fabric Ducting with Spring Steel Helix
Product Code: FFU1
Description

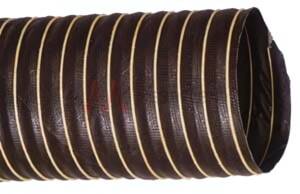

Extremely lightweight ducting made with a high tensile spring steel helix, covered with neoprene-coated impregnated glass fibre fabric, featuring an outer cord of neoprene-coated glass fibre. Renown for its extreme flexibility which makes this construction excellent for installations where space is at a premium and manoeuvrability is essential.
Features and Applications
Our economical neoprene ducting is perfect for conveying chemical fumes, industrial fumes, non-aromatic solvents used in aerospace applications. Its construction ensures good chemical resistance in the vapour phase, making it suitable for various industrial settings.
Properties
This ducting is celebrated for its lightweight nature and ease of handling. Its construction makes it axially compressible and highly flexible, maintaining cross-sectional area on sharp bends and providing good low-temperature flexibility. It offers resistance to many oils, greases, solvents, and industrial chemicals in the vapour phase at moderate concentrations.
Flexflyte U1 can be ordered in lengths up to 4 metres with straight, tapered, or expanded cuffs for secure and leak-tight connections to meet your specific application requirements. Bore Finish: Corrugated
Temperature
- -50°C to 150°C
Suitable Media
- Chemical fumes
- Industrial fumes
- Non-aromatic solvents
- Cold air
- Non-abrasive powders
- Non-abrasive dust
Construction
- Wall: Neoprene-coated Glass Fibre Fabric
- Reinforcement: Neoprene-coated Glass Fibre Cord
- Helix: Spring Steel
Certification
- BS476 parts 6 & 7 & 20 with a fire resistance time of 60 minutes
- RoHS
- REACH
Applications
- Aerospace
- Automotive
- Materials drying
Available Colours
- Black with White Cord
| Part | Inner Diameter | Working Pressure | Vacuum Rating | Bend Radius | Weight | Colour |
|---|---|---|---|---|---|---|
| FFU1025 | 25 | 1.35 | 5.17 | 13 | 125 | Black |
| FFU1038 | 38 | 1.2 | 5.17 | 19 | 170 | Black |
| FFU1044 | 44 | 1.2 | 4.70 | 19 | 210 | Black |
| FFU1051 | 51 | 1.2 | 4.28 | 19 | 250 | Black |
| FFU1064 | 64 | 1.03 | 4.28 | 25 | 310 | Black |
| FFU1076 | 76 | 1.03 | 3.40 | 25 | 420 | Black |
| FFU1102 | 102 | 0.85 | 2.58 | 32 | 565 | Black |
| FFU1127 | 127 | 0.68 | 1.70 | 38 | 800 | Black |
| FFU1152 | 152 | 0.68 | 1.36 | 44 | 1040 | Black |
| FFU1178 | 178 | 0.5 | 1.02 | 51 | 1210 | Black |
| FFU1203 | 203 | 0.5 | 0.680 | 57 | 1390 | Black |
| FFU1229 | 229 | 0.35 | 0.540 | 64 | 1810 | Black |
| FFU1254 | 254 | 0.3 | 0.410 | 70 | 2000 | Black |
| FFU1305 | 305 | 0.25 | 0.27 | 83 | 2410 | Black |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
