Applications
Automotive industry, air conditioning plants, ventilation systems, suction of fumes, vapours, powders and gas.
Technical

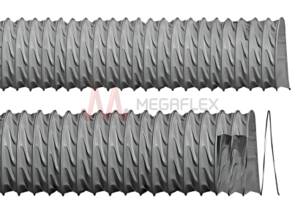

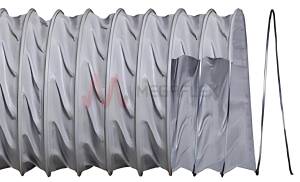

Flexible ducting made in PVC coated with polyester fabric, reinforced with a steel wire. The steel helix is welded between 2 fabric layers.
Properties
Flame resistant according to UL94V0 and M1 grade according to NFP 92 503. It comes in compressible length (about 8:1) for easy handling and cost saving in stocking and transporting. Very light, flexible and good in bending. Resistant to high temperature up to 100°C (peaks 120°C for short terms).
Standards
Flame resistant according to UL94V0 and M1 grade according to NFP 92 503.
Accessories
Datasheet Available
Temperature Range
-20°C to 100°C (intermittently up to 120°C)
Colour: Grey
| Part | ID ⌀ | Weight | Bend Radius | Coil Length | Volume |
|---|---|---|---|---|---|
| No. | |||||
| TR01040 | 40 | 110 | 20 | 10 | 0.002 |
| TR01051 | 51 | 135 | 26 | 10 | 0.003 |
| TR01060 | 60 | 160 | 30 | 10 | 0.004 |
| TR01063 | 63 | 170 | 32 | 10 | 0.005 |
| TR01070 | 70 | 185 | 35 | 10 | 0.006 |
| TR01076 | 76 | 200 | 38 | 10 | 0.006 |
| TR01080 | 80 | 210 | 40 | 10 | 0.007 |
| TR01090 | 90 | 240 | 45 | 10 | 0.009 |
| TR01102 | 102 | 280 | 51 | 10 | 0.011 |
| TR01110 | 110 | 300 | 55 | 10 | 0.013 |
| TR01115 | 115 | 315 | 58 | 10 | 0.014 |
| TR01120 | 120 | 325 | 60 | 10 | 0.016 |
| TR01127 | 127 | 345 | 64 | 10 | 0.017 |
| TR01130 | 130 | 355 | 65 | 10 | 0.018 |
| TR01140 | 140 | 380 | 70 | 10 | 0.021 |
| TR01152 | 152 | 410 | 76 | 10 | 0.025 |
| TR01160 | 160 | 425 | 80 | 10 | 0.028 |
| TR01180 | 180 | 475 | 90 | 10 | 0.035 |
| TR01203 | 203 | 535 | 102 | 10 | 0.044 |
| TR01228 | 228 | 600 | 114 | 10 | 0.055 |
| TR01254 | 254 | 845 | 127 | 10 | 0.068 |
| TR01279 | 279 | 925 | 140 | 10 | 0.082 |
| TR01305 | 305 | 1010 | 153 | 10 | 0.098 |
| TR01315 | 315 | 1045 | 158 | 10 | 0.104 |
| TR01330 | 330 | 1090 | 165 | 10 | 0.114 |
| TR01356 | 356 | 1180 | 178 | 10 | 0.132 |
| TR01406 | 406 | 1340 | 203 | 10 | 0.171 |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
