Eolo Vent Flame Retardant Grey PVC-coated Polyester Fabric Ducting with Steel Helix
Product Code: TO01
Description
Ideal for the automotive industry, air conditioning installations, and general ventilation systems. Eolo Vent ducting is perfectly suited for the suction of fumes, vapours, powders, and gases, providing efficient air and material movement in industrial settings.
Technical

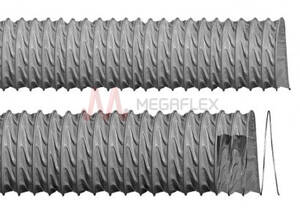

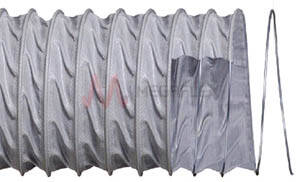

This flexible ducting is made from PVC-coated polyester fabric, reinforced with an embedded steel wire helix. This design ensures the duct maintains its structure while allowing for high flexibility. The steel wire is welded between two layers of fabric, enhancing the duct's durability and shape retention.
Properties
Supplied in a compressible form, this ducting reduces storage space requirements and lowers transportation costs. It is lightweight, highly flexible, and maintains excellent bending characteristics, making it user-friendly for installing complex ventilation systems where space and maneuverability are constraints. Free from phthalates and halogens.
Standards
Complies with the M2 grade of flame retardancy as per the NFP 92 503 standard, ensuring safety in environments where fire resistance is crucial. Bore Finish: Corrugated
Temperature
- -20°C to 100°C
Applications
- Automotive
- Air conditioning
- Ventilation
Suitable Media
- Fumes
- Vapours
- Powders
- Gas
Certification
- NFP 92 503 (M2 Grade)
- RoHS
- REACH
Construction
- Wall: PVC coated polyester
- Helix: Steel
Available Colours
- Grey
| Part | Inner Diameter | Bend Radius | Weight | Length | Volume | Availability |
|---|---|---|---|---|---|---|
| TO01040 | 40 | 20 | 70 | 10 | 0.002 | Production |
| TO01051 | 51 | 26 | 95 | 10 | 0.003 | Production |
| TO01060 | 60 | 30 | 115 | 10 | 0.004 | Production |
| TO01063 | 63 | 32 | 118 | 10 | 0.005 | Production |
| TO01070 | 70 | 35 | 120 | 10 | 0.006 | Production |
| TO01076 | 76 | 38 | 130 | 10 | 0.006 | Production |
| TO01080 | 80 | 40 | 140 | 10 | 0.007 | Production |
| TO01090 | 90 | 45 | 155 | 10 | 0.009 | Production |
| TO01102 | 102 | 51 | 135 | 10 | 0.011 | Production |
| TO01110 | 110 | 55 | 145 | 10 | 0.013 | Production |
| TO01115 | 115 | 58 | 155 | 10 | 0.014 | Production |
| TO01120 | 120 | 60 | 160 | 10 | 0.015 | Production |
| TO01127 | 127 | 64 | 170 | 10 | 0.017 | Production |
| TO01130 | 130 | 65 | 175 | 10 | 0.018 | Production |
| TO01140 | 140 | 70 | 185 | 10 | 0.021 | Production |
| TO01152 | 152 | 76 | 200 | 10 | 0.024 | Production |
| TO01160 | 160 | 80 | 210 | 10 | 0.027 | Production |
| TO01180 | 180 | 90 | 240 | 10 | 0.034 | Production |
| TO01203 | 203 | 102 | 270 | 10 | 0.043 | Production |
| TO01228 | 228 | 114 | 300 | 10 | 0.054 | Production |
| TO01254 | 254 | 127 | 335 | 10 | 0.067 | Production |
| TO01279 | 279 | 140 | 365 | 10 | 0.08 | Production |
| TO01305 | 305 | 153 | 400 | 10 | 0.096 | Production |
| TO01315 | 315 | 158 | 415 | 10 | 0.102 | Production |
| TO01330 | 330 | 165 | 430 | 10 | 0.112 | Production |
| TO01356 | 356 | 178 | 470 | 10 | 0.13 | Production |
| TO01406 | 406 | 203 | 530 | 10 | 0.168 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
