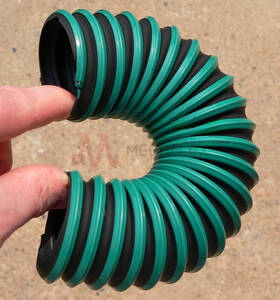

Vulcano TPR A Black with Green Stripe Thermo-Plastic Rubber Ducting with Steel Helix

Product Code: VT01

Vulcano TPR-A - Thermoplastic Rubber Ducting | Versatile, Safe

Description

Vulcano TPR-A Thermoplastic Rubber Ducting is the go-to choice for professionals seeking high-quality, versatile, and compliant ducting solutions. Its design ensures ease of installation, durability, and safety, making it indispensable for any industrial application involving:

Suction of hot air and fumes in chemical plants, shipyards, and the automotive industry.
Integration into heating, air conditioning, and ventilation systems.

Technical Specifications

Material: Constructed from durable thermoplastic rubber (TPV) with a steel spiral reinforcement seamlessly embedded between two layers for enhanced durability.
Wall Thickness: Between 0.4mm to 0.65mm, offering a perfect balance of robustness and flexibility.

Key Properties

Flexibility: Lightweight and easy to handle, with superior bending capabilities for dynamic applications.
Durability: Exceptional resistance to high temperatures, chemicals, and abrasion, ensuring longevity in harsh environments.
Safety: Halogen-free, adhering to RoHS standards, safeguarding both the environment and your operations.
Colour: Black with a distinctive green stripe for easy identification.
Electrical Properties: Can be electrically bonded by grounding the spiral, with resistance R ≤ 10² Ohm/m, compliant with ISO 8031 and ATEX Directives.

Standards Compliance

Meets the stringent requirements of the RoHS 2011/65/EU Directive and REACH Regulation (1907/2006).

Bore Finish: Corrugated

Temperature

-40°C to 125°C

Applications

Chemical plants
Shipyards
Automotive
Air conditioning
Heating
Ventilation systems

Certification

ATEX DIRECTIVE 2014/34/UE and 99/92/EC
ISO 8031
RoHS
REACH

Electrical Resistance

Conductive to 10² Ω/m

Construction

Wall: TPV Rubber
Helix: Steel

Suitable Media

Hot air
Fumes
Gases

Available Colours

Black
Green

Part	Inner Diameter	Wall Thickness	Vacuum Rating	Bend Radius	Weight	Length	Volume	Availability

VT01032	32	0.4	2	30	165	20	0.056	Production
VT01035	35	0.4	2	30	175	20	0.060	Production
VT01038	38	0.4	2	30	185	20	0.065	Good
VT01040	40	0.4	2	32	195	20	0.068	Good
VT01045	45	0.4	2	36	220	20	0.095	Good
VT01051	51	0.4	2	40	245	20	0.106	Good
VT01055	55	0.4	1.7	50	265	20	0.121	Production
VT01060	60	0.4	1.7	50	285	20	0.131	Good
VT01063	63	0.4	1.7	55	300	20	0.136	Good
VT01065	65	0.4	1.7	56	310	20	0.187	Production
VT01070	70	0.5	1.7	60	465	20	0.200	Good
VT01076	76	0.5	1.7	65	505	20	0.215	Good
VT01080	80	0.5	1.6	65	530	20	0.225	Good
VT01089	89	0.5	1.6	75	585	20	0.279	Production
VT01090	90	0.5	1.6	75	590	20	0.282	Good
VT01100	100	0.6	1.3	85	645	15	0.311	Good
VT01102	102	0.6	1.3	85	660	15	0.317	Good
VT01110	110	0.6	1.2	90	710	15	0.510	Good
VT01115	115	0.6	1	100	740	15	0.531	Production
VT01120	120	0.6	1	100	770	15	0.553	Good
VT01127	127	0.65	1	105	855	15	0.588	Good
VT01130	130	0.65	0.8	105	870	15	0.600	Good
VT01140	140	0.65	0.8	115	935	15	0.763	Good
VT01150	150	0.65	0.8	125	1000	15	0.814	Good
VT01152	152	0.65	0.8	125	1015	15	0.824	Good
VT01160	160	0.65	0.7	130	1070	15	0.870	Good
VT01180	180	0.65	0.5	150	1350	15	0.983	Good
VT01203	203	0.65	0.4	165	1515	15	1.10	Good
VT01220	220	0.65	0.4	185	1640	10	1.19	Production
VT01228	228	0.65	0.4	185	1695	10	1.23	Production
VT01254	254	0.65	0.4	210	1920	10	1.36	Good
VT01265	265	0.65	0.4	220	2045	10	1.42	Production
VT01279	279	0.65	0.4	230	2115	10	1.50	Production
VT01305	305	0.65	0.3	250	2335	10	1.63	Good
VT01356	356	0.65	0.3	300	2715	10	2.96	Production
VT01406	406	0.65	0.3	350	3170	10	3.36	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 or email us at sales@megaflex.co.uk for further details!
