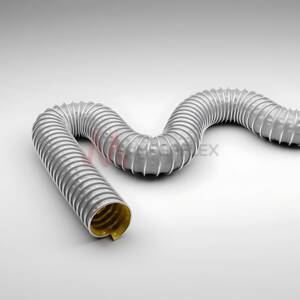

Master Clip Kapton Laminated High Temperature Ducting up to 400°C (Production only, Minimum Order Quantities apply)

Product Code: M365

Description

High temperature ducting with galvanised steel clamping profile, offers excellent chemical resistance and operates over a wide temperature range.

Features and Applications

Master-Clip KAPTON® is ideal for automotive, industrial, and chemical applications requiring high temperature and chemical resistance. Its spiral construction includes a hot-dip galvanised steel strip for durability. The external spiral is designed as an additional protective profile. The wall is made of glass fabric with one side laminated with KAPTON®, providing very good resistance to chemicals.

Properties

Master-Clip KAPTON® offers exceptional durability, making it suitable for a wide range of industrial applications. It is very flexible, lightweight, and moderately pressure resistant. The hose features high gas tightness in the vacuum and low-pressure range, with good vacuum resistance. The outside is a silver colour, and the inside is a yellow-gold colour. Its chemical resistance is comparable to Master-Clip PTFE tubing but over a much wider temperature range. Bore Finish: Corrugated

Temperature

-260°C to 400°C

Applications

Oven manufacturing
Heat protection
Mining industry
Iron and steel industry
Smoke extractors
Machine manufacturing
Extractor units
Furnace construction
Flue gas exhaust

Construction

Wall: Kapton-coated glass fibre fabric
Helix: Galvanised steel

Suitable Media

Hot air
Cold air
Fumes

Certification

RoHS
REACH

Available Colours

Silver

Old product codes for this item:

000365-050000365-055000365-060000365-065000365-070000365-075000365-080000365-090000365-100000365-110000365-120000365-125000365-130000365-140000365-150000365-160000365-170000365-175000365-180000365-200000365-215000365-225000365-250000365-275000365-300000365-315000365-325000365-350000365-375000365-400000365-450000365-500000365-550000365-600000365-700000365-800000365-900

Part	Inner Diameter	Working Pressure	Vacuum Rating	Bend Radius	Weight	Max Production Length

M365-50	50	0.9	3.77	30	800	15
M365-55	55	0.82	3.37	33	800	15
M365-60	60	0.7	3.06	36	800	15
M365-65	65	0.63	2.86	39	900	15
M365-70	70	0.55	2.55	42	900	15
M365-75	75	0.5	2.45	45	900	15
M365-80	80	0.45	2.14	48	1000	15
M365-90	90	0.4	2.04	54	1000	15
M365-100	100	0.35	1.63	60	1000	15
M365-110	110	0.3	1.33	66	1100	15
M365-120	120	0.28	1.12	72	1100	15
M365-125	125	0.27	1.02	75	1300	15
M365-130	130	0.26	0.918	78	1300	15
M365-140	140	0.2	0.816	84	1300	15
M365-150	150	0.17	0.714	90	1400	15
M365-160	160	0.16	0.612	96	1400	15
M365-170	170	0.16	0.612	102	1400	15
M365-175	175	0.15	0.510	105	1600	15
M365-180	180	0.13	0.510	108	1600	15
M365-200	200	0.12	0.408	120	1800	15
M365-215	215	0.12	0.408	151	2000	15
M365-225	225	0.11	0.306	158	2200	15
M365-250	250	0.1	0.306	175	2500	15
M365-275	275	0.09	0.204	193	2900	15
M365-300	300	0.08	0.204	210	3200	15
M365-315	315	0.07	0.204	221	3300	15
M365-325	325	0.06	0.204	228	3500	15
M365-350	350	0.05	0.102	245	3900	15
M365-375	375	0.04	0.102	263	4400	15
M365-400	400	0.04	0.102	280	4900	15
M365-450	450	0.03	0.102	360	5700	15
M365-500	500	0.03	0.102	400	6500	15
M365-550	550	0.03	0.102	440	7300	15
M365-600	600	0.02	0.102	480	8200	15
M365-700	700	0.01	0.102	560	9600	15
M365-800	800	0.01	0.102	640	11000	15
M365-900	900	0.01	0.102	720	12500	15

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 or email us at sales@megaflex.co.uk for further details!
