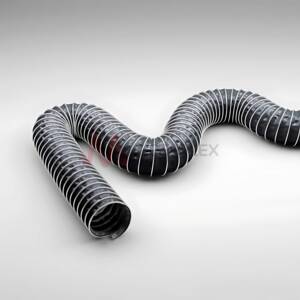

Master Clip PTFE Laminated Electrically Conductive Ducting up to 280°C (Production only, Minimum Order Quantities apply)

Product Code: M376

Description

Designed for the suction and blowing of corrosive media in industrial applications. This electroconductive ducting is highly flexible and heat-resistant, making it suitable for a wide range of demanding environments.

Features and Applications

Master-Clip PTFE EL is ideal for the semiconductor industry, ventilation and air-conditioning, chemistry, surface technology, conveying, lifting and feeding technology, and metal and toolmaking. Its spiral construction features a hot-dip galvanised steel strip for durability. The external spiral is designed as an additional protective profile. The wall is made of electrically conductive PTFE laminate, with a multi-layered design ensuring optimal transport of media due to its anti-adhesive inner surface.

Properties

Master-Clip PTFE EL offers exceptional flexibility and durability. It is very flexible, lightweight, and moderately pressure resistant, with compressibility up to approximately 1:6, heat-resistant, cold-resistant, and weather-resistant, providing good resistance to chemicals. The inner layer has a surface resistance of R₀ < 10⁶ Ohm, meeting the requirements of TRGS 727 and ATEX 2014/34 EU standards.

Choose Master-Clip PTFE EL for a reliable, high-performance solution in demanding industrial environments. Its combination of high-quality materials, excellent chemical resistance, and electroconductive properties makes it an essential component. Bore Finish: Corrugated

Temperature

-150°C to 280°C, intermittently as high as 300°C

Applications

Semiconductor industry
Ventilation
Air-conditioning
Chemistry
Surface technology
Conveying
Lifting and feeding technology
Metal and toolmaking

Certification

ATEX 2014/34/EU (1999/92/EC)
TRGS 727
RoHS
REACH

Construction

Wall: PTFE-coated glass fibre fabric
Helix: Galvanised steel

Suitable Media

Corrosive media
Hot air
Cold air
Fumes

Electrical Resistance

Antistatic to 10⁶ Ω/m

Available Colours

Black

Part	Inner Diameter	Working Pressure	Vacuum Rating	Bend Radius	Weight	Length	Max Production Length

M376-55	55	0.58	1.33	33	400		10
M376-60	60	0.55	1.22	36	500		10
M376-65	65	0.5	1.12	39	500		10
M376-70	70	0.4	1.12	42	500		10
M376-75	75	0.35	1.02	45	500		10
M376-80	80	0.3	0.918	48	500		10
M376-90	90	0.26	0.816	54	600		10
M376-100	100	0.23	0.714	60	600		10
M376-110	110	0.2	0.612	66	600		10
M376-120	120	0.18	0.510	72	700		10
M376-125	125	0.17	0.510	75	700		10
M376-130	130	0.15	0.510	78	800		10
M376-140	140	0.14	0.408	84	800		10
M376-150	150	0.14	0.408	90	900		10
M376-160	160	0.13	0.408	96	900		10
M376-170	170	0.12	0.306	102	900		10
M376-175	175	0.11	0.306	105	1000		10
M376-180	180	0.11	0.306	108	1000		10
M376-200	200	0.1	0.306	120	1100		10
M376-215	215	0.09	0.204	151	1100		10
M376-225	225	0.08	0.204	158	1200		10
M376-250	250	0.08	0.204	175	1400		10
M376-275	275	0.07	0.102	193	1700		10
M376-300	300	0.06	0.102	210	1900		6
M376-315	315	0.06	0.102	221	1900		6
M376-325	325	0.05	0.102	228	2000		6
M376-350	350	0.05	0.102	245	2200		6
M376-375	375	0.04	0.102	263	2600		6
M376-400	400	0.03	0.102	280	2800		6
M376-450	450	0.03	0.102	360	3300	3	6
M376-500	500	0.03	0.102	400	3800	3	3
M376-550	550	0.02	0.102	440	4400	3	3
M376-600	600	0.02	0.102	480	4900	3	3
M376-700	700	0.02	0.102	560	5600	3	3
M376-800	800	0.02	0.102	640	6200	3	3
M376-900	900	0.01	0.102	720	7000	2.5	2.5

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 or email us at sales@megaflex.co.uk for further details!
