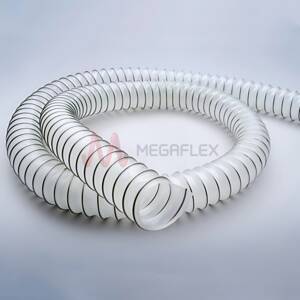

Master H2O Drinking Water TPE Ducting with Stainless Steel Helix (Production only, Minimum Order Quantities apply)
Product Code: M6197
Description
High-quality TPE film hose designed for the safe transport of drinking water. This hose is engineered with a stainless steel spiral and is certified for use in both cold and hot water drinking water applications up to 60°C.
Features and Applications
Master H2O is perfect for applications in the cold and hot water sector, ensuring safe and reliable transport of drinking water. The hose is constructed with a TPE film design and a stainless steel spiral made from spring steel (1.4310), providing durability and flexibility. The wall thickness between the spirals is approximately 0.6 mm, made from TPE, and meets the KTW/TPE transition recommendation and W270 certification standards.
Properties
Master H2O is designed according to TRGS 727 and ATEX 2014/34 EU standards, with grounding on both sides of the spiral for aspirative and pneumatic conveying of non-flammable dusts and bulk materials in zone 22. It is also suitable for conveying gases and liquids with low conductivity in zone 2, with manufacturing processes adhering to GMP EC 2023/2006 standards. This hose offers good UV and ozone resistance, is halogen-free, plasticiser-free, and permanently kink-resistant. These properties ensure long-term durability and reliability in demanding environments.
Choose Master H2O for a durable, flexible, and safety-compliant solution in drinking water applications. Its combination of high-quality materials, certification standards, and excellent resistance properties makes it an essential component for water transport needs. Bore Finish: Corrugated
Temperature
- -40°C to 90°C, intermittently as high as 125°C
Certification
- KTW / TPE transition recommendation
- W270 certified for the transport of drinking water up to 60 °C
- ATEX 2014/34 EU
- TRGS 727
- GMP EC 2023/2006
Applications
- Pneumatics
- Manufacturing
- Transport of drinking water
Suitable Media
- Drinking water
- Hot water
- Cold water
- Air
Construction
- Wall: TPE
- Helix: Stainless steel
Food Quality
- Suitable for potable water.
Available Colours
- Translucent
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | W.P. at 60°C | Vacuum Rating | Bend Radius | Weight | Length | Max Production Length |
|---|---|---|---|---|---|---|---|---|---|---|
| M6197-40 | 40 | 45 | 0.6 | 0.43 | 0.23 | 2.45 | 25 | 200 | 25 | |
| M6197-45 | 45 | 50 | 0.6 | 0.42 | 0.23 | 2.24 | 28 | 240 | 25 | |
| M6197-51 | 51 | 56 | 0.6 | 0.41 | 0.22 | 2.04 | 32 | 290 | 25 | |
| M6197-60 | 60 | 65 | 0.6 | 0.39 | 0.21 | 1.94 | 38 | 360 | 25 | |
| M6197-63 | 63 | 68 | 0.6 | 0.39 | 0.21 | 1.73 | 40 | 390 | 25 | |
| M6197-65 | 65 | 70 | 0.6 | 0.39 | 0.21 | 1.63 | 42 | 410 | 25 | |
| M6197-70 | 70 | 76 | 0.6 | 0.38 | 0.2 | 1.63 | 45 | 450 | 25 |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
Please click here for full terms and conditions.
Please contact our sales office on 01636816612 or email us at sales@megaflex.co.uk for further details!
