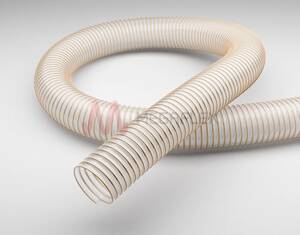

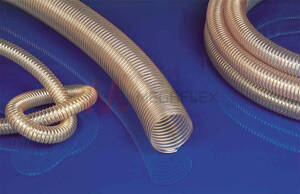

Master PUR L Bio Based Polyether Polyurethane Ducting with Spring Steel Helix (Production only, Minimum Order Quantities apply)

Product Code: M8258

Description

Lightweight and highly flexible suction and delivery ducting made from bio-based polyether polyurethane. Designed to be eco-friendly, this ducting offers excellent performance in industrial applications while maintaining a commitment to sustainability.

Features and Applications

Master-PUR L Bio Based is perfect for plant and mechanical engineering sectors, providing a reliable solution for suction and transport tasks. The hose is constructed with a steel wire spiral and features a wall thickness of approximately 0.7 mm made from polyether polyurethane derived from predominantly bio-based plastics, including materials from biomass. Its transparency allows for easy visual monitoring of contents, making it ideal for industries that require both functionality and environmental responsibility.

Properties

This hose excels in chemical resistance, offering very good resistance to petrol, oil, UV rays, and ozone. It is also hydrolysis and microbe-resistant, ensuring long-lasting durability even in challenging environments. The hose is moderately flexible and pressure-resistant, with a lightweight construction that facilitates ease of use. Additionally, it is halogen-free, contributing to a safer and more sustainable operation. Bore Finish: Corrugated

Temperature

-40°C to 90°C, intermittently as high as 125°C

Applications

Plant engineering
Mechanical engineering
High chemical resistance applications
Eco-friendly solutions

Construction

Wall: Ether-PU
Helix: Spring steel

Certification

RoHS
REACH

Available Colours

Clear

Suitable Media

Old product codes for this item:

008258-040008258-050008258-051008258-060008258-063008258-065008258-070008258-075008258-076008258-080008258-090008258-100008258-102008258-110008258-115008258-120008258-125008258-127008258-130008258-140008258-150008258-152008258-160008258-170008258-175008258-180008258-200008258-203008258-225008258-250008258-254008258-275008258-280008258-300008258-315008258-325008258-350008258-400008258-450008258-500

Part	Inner Diameter	Outer Diameter	Wall Thickness	Working Pressure	Vacuum Rating	Bend Radius	Weight	Max Production Length

M8258-40	40	48	0.7	1.89	4.69	48	300	25
M8258-50	50	57	0.7	1.59	3.98	58	370	25
M8258-51	51	58	0.7	1.51	3.67	58	380	25
M8258-60	60	68	0.7	1.26	3.16	68	500	25
M8258-63	63	71	0.7	1.2	2.86	71	520	25
M8258-65	65	73	0.7	1.13	2.65	73	540	25
M8258-70	70	78	0.7	1.01	2.65	78	580	25
M8258-75	75	83	0.7	1.01	2.14	84	610	25
M8258-76	76	85	0.7	0.94	2.14	85	620	25
M8258-80	80	88	0.7	0.88	2.14	88	650	25
M8258-90	90	99	0.7	0.76	1.53	99	800	25
M8258-100	100	108	0.7	0.76	1.53	110	940	25
M8258-102	102	111	0.7	0.71	1.53	111	950	25
M8258-110	110	119	0.7	0.63	1.53	119	970	25
M8258-115	115	124	0.7	0.63	1.53	124	980	25
M8258-120	120	129	0.7	0.63	1.53	129	1000	25
M8258-125	125	134	0.7	0.63	1.53	135	1070	25
M8258-127	127	137	0.7	0.59	1.53	137	1080	25
M8258-130	130	139	0.7	0.5	1.53	139	1140	25
M8258-140	140	149	0.7	0.5	1.02	149	1210	25
M8258-150	150	159	0.7	0.5	1.02	161	1270	25
M8258-152	152	162	0.7	0.5	1.02	162	1300	25
M8258-160	160	169	0.7	0.5	1.02	170	1420	25
M8258-170	170	179	0.7	0.38	1.02	180	1560	25
M8258-175	175	184	0.7	0.38	1.02	185	1630	25
M8258-180	180	189	0.7	0.38	1.02	190	1700	25
M8258-200	200	210	0.7	0.38	1.02	210	1980	25
M8258-203	203	213	0.7	0.36	0.918	213	2000	25
M8258-225	225	235	0.7	0.25	0.510	235	2180	25
M8258-250	250	260	0.7	0.25	0.510	260	2330	25
M8258-254	254	264	0.7	0.25	0.510	264	2360	25
M8258-275	275	285	0.7	0.25	0.510	284	2470	25
M8258-280	280	290	0.7	0.25	0.510	290	2600	25
M8258-300	300	310	0.7	0.23	0.510	310	3200	20
M8258-315	315	325	0.7	0.23	0.510	325	3320	20
M8258-325	325	335	0.7	0.23	0.510	335	3400	20
M8258-350	350	360	0.7	0.12	0.510	360	3600	20
M8258-400	400	411	0.7	0.12	0.510	410	4450	20
M8258-450	450	461	0.7	0.12	0.510	460	5060	20
M8258-500	500	511	0.7	0.12	0.408	510	5700	20

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 or email us at sales@megaflex.co.uk for further details!
