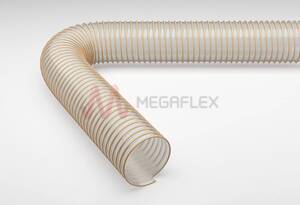

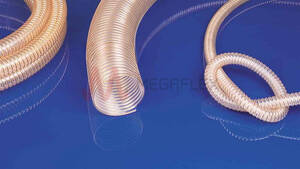

Master PUR M HT 125 High Temperature Antistatic Ducting with Spring Steel Helix (Production only, Minimum Order Quantities apply)
Product Code: M9029
Description
Master-PUR M HT 125 — a medium-weight, highly flexible suction and transport ducting designed to withstand constant temperatures up to 125°C. Built for industrial applications where durability and reliable performance are critical, featuring permanent antistatic properties and enhanced resistance to chemicals and fuels.
Features and Applications

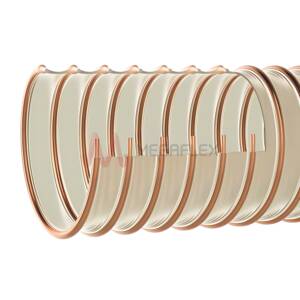

Ideal for plant and mechanical engineering, robotics, and automation, the Master-PUR M HT 125 is constructed with a profile extruded hose design reinforced by a spring steel wire helix. The hose wall, made of high-temperature polyurethane, is more resistant to heat than standard polyurethane, ensuring long-lasting performance under demanding conditions. Its wall thickness of approximately 1.0 mm provides a balanced combination of strength and flexibility. The hose's surface resistance is below 10⁹ Ohms, as per DIN EN ISO 8031 standards, making it suitable for use in areas requiring electrostatic dissipation.
Properties
Master-PUR M HT 125 is medium-heavy and moderately pressure-resistant, offering excellent tensile and tear strength for rugged industrial environments. It is compliant with TRGS 727 and ATEX 2014/34 EU standards, ensuring it meets the safety requirements for hazardous areas. The hose offers good chemical resistance, withstanding petrol, oils, and other chemicals, while maintaining flexibility and ease of handling. Its enhanced thermal properties make it an ideal choice for applications requiring consistent performance at elevated temperatures. Bore Finish: Corrugated
Temperature
- -30°C to 125°C, intermittently as high as 150°C
Applications
- Plant engineering
- Mechanical engineering
- Robotics
- Automation
- Manufacturing
Certification
- ATEX 2014/34/EU (1999/92/EC)
- TRGS 727
- DIN EN ISO 8031
- RoHS
- REACH
Construction
- Wall: High temperature PU
- Helix: Spring steel
Electrical Resistance
- Antistatic to 109 Ω/m
Available Colours
- Clear
Suitable Media
- Air
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Vacuum Rating | Bend Radius | Weight | Length | Max Production Length |
|---|---|---|---|---|---|---|---|---|---|
| M9029-25 | 25 | 31 | 1 | 2.41 | 5.91 | 20 | 250 | 25 | |
| M9029-26 | 26 | 32 | 1 | 2.39 | 5.91 | 20 | 250 | 25 | |
| M9029-38 | 38 | 45 | 1 | 1.77 | 5.40 | 27 | 380 | 25 | |
| M9029-40 | 40 | 47 | 1 | 1.69 | 5.30 | 29 | 390 | 25 | |
| M9029-51 | 51 | 58 | 1 | 1.54 | 5.20 | 36 | 540 | 25 | |
| M9029-55 | 55 | 63 | 1 | 1.54 | 4.79 | 39 | 610 | 25 | |
| M9029-60 | 60 | 68 | 1 | 1.42 | 4.69 | 48 | 650 | 25 | |
| M9029-65 | 65 | 73 | 1 | 1.33 | 4.28 | 53 | 710 | 25 | |
| M9029-70 | 70 | 78 | 1 | 1.24 | 4.18 | 59 | 750 | 25 | |
| M9029-76 | 76 | 85 | 1 | 1.12 | 3.77 | 68 | 810 | 25 | |
| M9029-80 | 80 | 89 | 1 | 1.09 | 3.57 | 77 | 860 | 25 | |
| M9029-90 | 90 | 100 | 1 | 0.88 | 3.26 | 87 | 1140 | 25 | |
| M9029-127 | 127 | 137 | 1 | 0.67 | 1.94 | 114 | 1410 | 25 | |
| M9029-152 | 152 | 162 | 1 | 0.52 | 1.63 | 146 | 1780 | 25 | |
| M9029-200 | 200 | 211 | 1 | 0.37 | 1.12 | 212 | 2130 | 25 |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
