Master PVC LF Lightweight Flexible Ducting with Spring Steel Helix (Production only, Minimum Order Quantities apply)

Product Code: M450

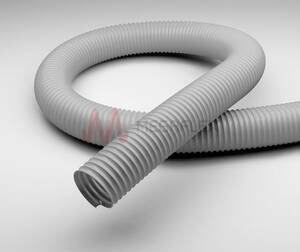

Master PVC LF Lightweight Ducting with Spring Steel Helix

Description

Master-PVC LF is a lightweight, highly flexible PVC film/foil hose, engineered to be hydrolysis-resistant, microbe-resistant, and flame-retardant, offering reliable performance in demanding environments.

Features and Applications

The Master-PVC LF is perfect for use in ventilation and air-conditioning systems, bulk handling, chemical processing, and the food and pharmaceutical industries. Its construction features a film hose with an embedded spring steel wire support coil, ensuring durability while maintaining flexibility. With a wall thickness of 0.5 to 0.8 mm between spirals depending on the diameter, this hose balances light weight with moderate pressure resistance, making it ideal for applications where flexibility and ease of handling are crucial. It also exhibits good resistance to oils, chemicals, alkaline solutions, and acids, making it suitable for a wide range of industrial uses.

Properties

This hose is characterised by its very high flexibility and light weight, allowing for easy installation and manoeuvrability. Despite its light build, it offers moderate pressure resistance, making it suitable for applications that require reliable performance under pressure. Its grey colour adds to its professional appearance and suitability for industrial environments. Bore Finish: Corrugated

Temperature

-20°C to 70°C, intermittently as high as 80°C

Applications

Ventilation
Air-conditioning
Bulk and construction
Chemical processing
Conveying
Lifting and feeding technology

Construction

Wall: PVC
Helix: Spring steel

Certification

RoHS
REACH

Available Colours

Grey

Suitable Media

Part	Inner Diameter	Outer Diameter	Wall Thickness	Working Pressure	Vacuum Rating	Bend Radius	Weight	Max Production Length

M450-20	20	24	0.5	1.9	5.51	20	140	15
M450-30	30	35	0.5	1.6	4.49	30	210	15
M450-38	38	43	0.5	1.43	3.37	38	250	15
M450-40	40	45	0.5	1.4	2.96	40	260	15
M450-45	45	50	0.5	1.32	2.86	45	280	15
M450-51	51	57	0.5	1.3	2.75	51	340	15
M450-55	55	61	0.5	1.2	2.55	55	460	15
M450-60	60	66	0.5	1.1	2.55	60	520	15
M450-65	65	71	0.5	1	2.24	65	460	15
M450-70	70	76	0.5	0.9	2.24	70	580	15
M450-75	75	81	0.5	0.8	2.04	75	650	15
M450-76	76	82	0.5	0.79	2.04	76	650	15
M450-80	80	86	0.5	0.77	1.84	80	660	15
M450-90	90	96	0.5	0.7	1.73	90	750	15
M450-102	102	109	0.5	0.59	1.53	102	840	15
M450-110	110	117	0.5	0.57	1.43	110	890	15
M450-115	115	122	0.5	0.51	1.43	115	940	15
M450-120	120	127	0.5	0.45	1.33	120	970	15
M450-127	127	134	0.5	0.38	1.22	127	1040	15
M450-130	130	137	0.5	0.35	1.22	130	1050	15
M450-140	140	147	0.5	0.3	1.12	140	1130	15
M450-152	152	159	0.5	0.25	1.02	168	1320	15
M450-160	160	168	0.5	0.25	1.02	240	1640	15
M450-170	170	178	0.5	0.25	1.02	255	1740	15
M450-180	180	188	0.5	0.22	1.02	285	1950	15
M450-203	203	211	0.5	0.2	1.02	305	2190	15
M450-254	254	263	0.5	0.12	0.714	380	2600	15
M450-300	300	309	0.5	0.08	0.612	450	3070	15
M450-315	315	324	0.5	0.08	0.510	475	3280	15
M450-350	350	359	0.5	0.06	0.408	525	3580	15

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 or email us at sales@megaflex.co.uk for further details!
