Master-PVC L Lightweight Soft PVC Ducting with Spring Steel Wire Helix

Product Code: M225

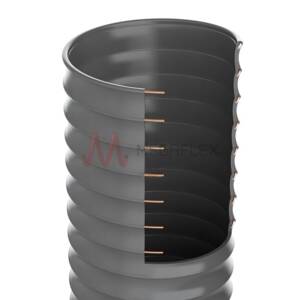

Lightweight PVC Vacuum Ducting Master PVC L for Automotive

Description

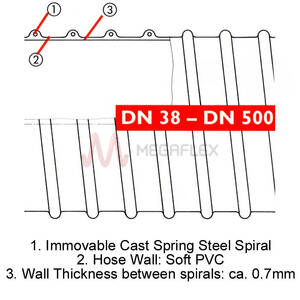

Master-PVC L is a lightweight PVC suction and delivery ducting designed for versatility and durability. It features a hose wall made of soft PVC and is reinforced with a spring steel wire spiral.

Features and Applications

Master-PVC L is ideal for the transport and suction of solid, gaseous, and liquid media, including small particle dusts and powders. It is suitable for use in air conditioning and ventilation, as a protection hose, and for liquid drainage. The hose is also used in automotive, plant and mechanical engineering, robotics and automation, ventilation and air-conditioning, bulk and construction, chemistry, plastics, conveying, lifting, and cable manufacturing.

Properties

The hose offers good resistance to oil, alkalis, acids, and chemicals, with a nearly smooth inside for optimal flow characteristics. It is extremely flexible, lightweight, with a small bend radius and gas-tight. The hose is electrically conductive to BGR 132 by grounding the spiral and is RoHS compliant. Wall thickness of approximately 0.7 mm between spirals. Bore Finish: Corrugated

Temperature

-20°C to 70°C, intermittently as high as 80°C

Applications

Automotive
Robotics
General industrial
Low-pressure
Vacuum applications
Air conditioning
Ventilation
Protection hose
Cable manufacturing

Certification

ATEX 2014/34/EU (1999/92/EC)
TRGS 727
RoHS
REACH

Suitable Media

Fumes
Dust
Powder
Mild chemicals
Air

Construction

Wall: PVC
Helix: Spring steel

Available Colours

Grey

Old product codes for this item:

000225-038M140-038-102140-038-102000225-040M140-040-102140-040-102000225-045M140-045-102140-045-102000225-050M140-050-102140-050-102000225-051M140-051-102140-051-102000225-055M140-055-102140-055-102000225-060M140-060-102140-060-102000225-065M140-065-102140-065-102000225-070M140-070-102140-070-102000225-075M140-075-102140-075-102000225-076M140-076-102140-076-102140-080-102M140-080-102000225-080140-090-102M140-090-102000225-090140-100-102M140-100-102000225-100M140-102-102000225-102140-102-102000225-110M140-110-102140-110-102000225-115M140-115-102140-115-102000225-120M140-120-102140-120-102000225-125M140-125-102140-125-102000225-127M140-127-102140-127-102M140-130-102000225-130140-130-102000225-140M140-140-102140-140-102000225-150M140-150-102140-150-102000225-152M140-152-102140-152-102000225-160M140-160-102140-160-102000225-170M140-170-102140-170-102140-175-102M140-175-102000225-175140-180-102M140-180-102000225-180140-200-102M140-200-102000225-200140-203-102M140-203-102000225-203M140-225-102000225-225140-225-102M140-250-102140-250-102000225-250000225-254M140-254-102140-254-102000225-275M140-275-102140-275-102000225-300M140-300-102140-300-102000225-315M140-315-102140-315-102M140-325-102140-325-102000225-325000225-350M140-350-102140-350-102000225-400M140-400-102140-400-102000225-450M140-450-102140-450-102000225-500M140-500-102140-500-102

Part	Inner Diameter	Outer Diameter	Wall Thickness	Working Pressure	Vacuum Rating	Bend Radius	Weight	Max Production Length

M225-38	38	46	0.7	0.84	6.73	46	410	25
M225-40	40	48	0.7	0.84	6.73	48	420	25
M225-45	45	53	0.7	0.74	6.02	53	440	25
M225-50	50	57	0.7	0.68	5.40	57	470	25
M225-51	51	58	0.7	0.67	5.30	58	480	25
M225-55	55	63	0.7	0.62	4.49	63	540	25
M225-60	60	68	0.7	0.56	4.49	68	560	25
M225-65	65	73	0.7	0.5	3.77	73	680	25
M225-70	70	78	0.7	0.45	3.77	78	720	25
M225-75	75	83	0.7	0.45	3.06	83	750	25
M225-76	76	84	0.7	0.45	2.96	84	760	25
M225-80	80	88	0.7	0.39	2.96	88	800	25
M225-90	90	99	0.7	0.34	2.24	99	930	25
M225-100	100	108	0.7	0.34	2.24	108	990	25
M225-102	102	110	0.7	0.34	2.24	110	1000	25
M225-110	110	119	0.7	0.28	2.24	119	1090	25
M225-115	115	124	0.7	0.28	2.24	124	1120	25
M225-120	120	129	0.7	0.28	2.24	129	1180	25
M225-125	125	133	0.7	0.28	2.24	133	1230	25
M225-127	127	135	0.7	0.28	2.24	135	1250	25
M225-130	130	139	0.7	0.22	2.24	139	1270	25
M225-140	140	149	0.7	0.22	1.53	149	1460	25
M225-150	150	159	0.7	0.22	1.53	159	1540	25
M225-152	152	161	0.7	0.22	1.53	161	1560	25
M225-160	160	170	0.7	0.22	1.53	170	1840	25
M225-170	170	180	0.7	0.17	1.53	180	1900	25
M225-175	175	185	0.7	0.17	1.53	185	1950	25
M225-180	180	190	0.7	0.17	1.53	190	2010	25
M225-200	200	210	0.7	0.17	1.53	210	2380	25
M225-203	203	214	0.7	0.17	1.53	214	2430	25
M225-225	225	235	0.7	0.11	0.714	235	2690	25
M225-250	250	256	0.7	0.11	0.714	256	3120	25
M225-254	254	260	0.7	0.11	0.714	260	3190	25
M225-275	275	284	0.7	0.11	0.714	284	3280	25
M225-300	300	310	0.7	0.1	0.714	310	3380	20
M225-315	315	325	0.7	0.1	0.714	325	3500	20
M225-325	325	335	0.7	0.1	0.714	335	3590	20
M225-350	350	360	0.7	0.05	0.714	360	3800	20
M225-400	400	411	0.7	0.05	0.510	410	4700	20
M225-450	450	461	0.7	0.05	0.510	460	5340	20
M225-500	500	511	0.7	0.05	0.510	510	6020	20

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 or email us at sales@megaflex.co.uk for further details!
