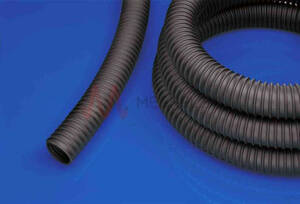

Master-Santo L SE Inflammable TPV Ducting with Spring Steel Helix

Product Code: M150-607

Lightweight Master Santoprene TPV Ducting Hardly Inflammable

Description

A high-performance thermoplastic vulcanizates (TPV) ducting that is exceptionally lightweight, engineered for increased temperature resistance, and hardly inflammable. This hose meets the stringent demands of modern industries, providing unparalleled reliability and safety.

Features and Applications:

Master-SANTO L SE is constructed with a thermoplastic vulcanizates (TPV) hose wall and a spiral of spring steel wire. It is designed for the suction of steam, transport of hot and cold air in vehicle and engine construction, as well as handling liquid and gaseous media. Its lightweight and flexible design make it easy to handle and install, enhancing efficiency. The hose's ability to withstand high temperatures and its hardly inflammable properties make it an excellent choice for demanding environments, ensuring reliable performance and durability.

Properties:

This hose features hardly inflammable TPV, rated V0 according to UL 94, offering excellent chemical resistance to alkalis, acids, and solvent vapours. It is gas-tight, free of plasticisers, and provides generally good UV and ozone resistance. Master-SANTO L SE is extremely flexible, with a small bend radius, and its nearly smooth inside ensures optimum flow characteristics. The hose is lightweight and electrically conductive to BGR 132 by grounding the spiral, and it is RoHS compliant. The robust construction and reliable design reduce maintenance costs and the risk of damage during operation, ensuring consistent and high-quality performance. Bore Finish: Corrugated

Temperature

-40°C to 130°C, intermittently as high as 150°C

Applications

Automotive
Mechanical engineering
Industry
Semiconductor industry
Ventilation
Air conditioning
Conveying
Steam suction

Certification

ATEX 2014/34/EU (1999/92/EC)
TRGS 727
UL 94 V0
RoHS
REACH

Suitable Media

Steam
Hot air
Cold air
Solvent fumes
Mild chemicals

Construction

Wall: TPV
Helix: Spring steel

Available Colours

Black

Old product codes for this item:

150-025-607150-032-607150-038-607150-040-607150-045-607150-050-607150-055-607150-060-607150-065-607150-070-607150-075-607150-080-607150-090-607150-100-607150-110-607150-115-607150-120-607150-125-607150-130-607150-140-607150-150-607150-160-607150-170-607150-175-607150-180-607150-200-607150-225-607150-250-607150-275-607150-280-607150-300-607150-315-607150-325-607150-350-607150-375-607150-400-607150-450-607150-500-607

Part	Inner Diameter	Outer Diameter	Wall Thickness	Working Pressure	Vacuum Rating	Bend Radius	Weight	Availability

150-025-607	25	31	0.7	1.06	8.00	31	240	Production
150-032-607	32	40	0.7	0.83	7.25	40	340	Production
150-038-607	38	46	0.7	0.69	6.75	46	370	Production
150-040-607	40	48	0.7	0.69	6.75	48	380	Production
150-045-607	45	53	0.7	0.61	6.00	53	400	Production
150-050-607	50	58	0.7	0.55	5.25	58	430	Production
150-055-607	55	63	0.7	0.51	4.50	63	490	Production
150-060-607	60	68	0.7	0.46	4.50	68	510	Production
150-065-607	65	73	0.7	0.42	3.75	73	620	Production
150-070-607	70	78	0.7	0.37	3.75	78	650	Production
150-075-607	75	84	0.7	0.37	3.00	84	690	Production
150-080-607	80	88	0.7	0.32	3.00	88	730	Production
150-090-607	90	99	0.7	0.28	2.25	99	850	Production
150-100-607	100	110	0.7	0.28	2.25	110	910	Production
150-110-607	110	119	0.7	0.23	2.25	119	990	Production
150-115-607	115	124	0.7	0.23	2.25	124	1020	Production
150-120-607	120	129	0.7	0.23	2.25	129	1060	Production
150-125-607	125	135	0.7	0.23	2.25	135	1130	Production
150-130-607	130	139	0.7	0.19	2.25	139	1150	Production
150-140-607	140	149	0.7	0.19	1.50	149	1330	Production
150-150-607	150	161	0.7	0.19	1.50	161	1420	Production
150-160-607	160	170	0.7	0.19	1.50	170	1670	Production
150-170-607	170	180	0.7	0.14	1.50	180	1730	Production
150-175-607	175	185	0.7	0.14	1.50	185	1780	Production
150-180-607	180	190	0.7	0.14	1.50	190	1520	Production
150-200-607	200	214	0.7	0.14	1.50	214	2210	Production
150-225-607	225	235	0.7	0.09	0.750	235	2450	Production
150-250-607	250	260	0.7	0.09	0.750	260	2900	Production
150-275-607	275	284	0.7	0.09	0.750	284	2990	Production
150-280-607	280	290	0.7	0.09	0.750	290	3010	Production
150-300-607	300	310	0.7	0.08	0.675	310	3070	Production
150-315-607	315	325	0.7	0.08	0.675	325	3110	Production
150-325-607	325	335	0.7	0.08	0.675	335	3260	Production
150-350-607	350	360	0.7	0.04	0.675	360	3460	Production
150-375-607	375	385	0.7	0.04	0.525	385	3870	Production
150-400-607	400	411	0.7	0.04	0.525	410	4270	Production
150-450-607	450	461	0.7	0.04	0.525	460	4860	Production
150-500-607	500	511	0.7	0.04	0.525	510	5470	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 or email us at sales@megaflex.co.uk for further details!
