Next 09 - Clear Ester Polyurethane Ducting Reinforced with TPU-coated Coppered Steel Wire Helix (Heavy Duty)

Product Code: N901

Next 09 Clear Ester-PU Ducting with TPU-coated Coppered Steel Helix (Heavy Duty)

Description

Applications
Suction of granules, abrasive powders, pellets, sawdust. Suitable to be used in plastic, woodworking, ceramic, dust extraction industries. Next 09 is made by a special TPU that combines different properties which make the wall material permanent antistatic, resistant to UV, microbes and hydrolysis.

Technical

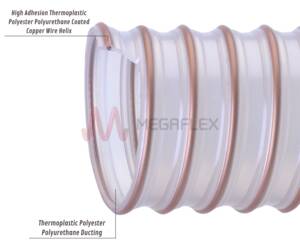

Ester based Polyurethane duct reinforced with a TPU high adhesion coated coppered steel spiral. Totally smooth inside to ensure optimization of flow properties. Constant Wall thickness of 0.9mm through all the diameter range.

Properties
Strong but light and flexible, it's suitable for heavy duty applications where a very good abrasion resistance is required, thanks to its capability of abrasion resistance of 20 mm3, which it means 50% more abrasion resistant than a conventional TPU hose. Resistant to mineral oils, ageing, atmospherical agents, ozone and to most chemicals. Free of Halogen and Phthalates, with raw materials in accordance to REACH and conform to RoHS Regulations.

Standards
Free of Halogen and Phthalates, with raw materials in accordance to REACH and conform to RoHS Regulations. The hose can be antistatic according to TRB S 2153 by grounding the spiral.

Accessories

Temperature

-40°C to 90°C, intermittently as high as 125°C

Electrical Resistance

Antistatic to 10⁹ Ω/m by grounding the copper braid wire.

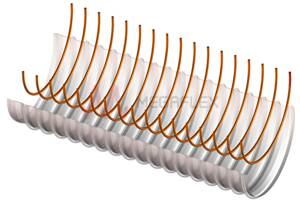

Construction

Wall: TPU
Helix: TPU Coated Steel
Surface Finish: Smooth

Applications

Suction plants
Cermic industry
Wood industry

Suitable Media

Chips
Sawdust
Fumes
Abrasive dust

Available Colours

Clear

Part	Inner Diameter	Wall Thickness	Vacuum Rating	Bend Radius	Weight	Length	Straight Length?	Volume	Availability

N901025	25.4	0.9	5	30	220	30	No	0.056	Production
N901027	27	0.9	5	30	245	30	No	0.059	Production
N901030	30	0.9	5	35	255	30	No	0.077	Production
N901032	31.8	0.9	5	35	270	30	No	0.081	Production
N901038	38.1	0.9	5	40	335	30	No	0.085	Production
N901040	40	0.9	5	40	345	30	No	0.118	Good
N901045	45	0.9	5	45	370	30	No	0.131	Production
N901052	50.8	0.9	4	50	410	30	No	0.182	Good
N901060	60	0.9	3	70	530	30	No	0.213	Good
N901063	63.5	0.9	3	70	570	30	No	0.303	Good
N901065	65	0.9	3	75	580	30	No	0.309	Production
N901076	76.2	0.9	3	90	675	30	No	0.358	Good
N901080	80	0.9	3	95	680	30	No	0.374	Good
N901090	90	0.9	2.5	105	765	20	No	0.278	Production
N901100	100	0.9	2	135	910	20	No	0.309	Good
N901102	102	0.9	2	135	925	20	No	0.315	Good
N901110	110	0.9	2	145	965	20	No	0.506	Good
N901120	120	0.9	1.5	160	1060	20	No	0.550	Good
N901127	127	0.9	1.5	210	1120	20	No	0.580	Good
N901140	140	0.9	1	185	1160	20	No	0.636	Production
N901152	152	0.9	1	230	1375	20	No	0.819	Good
N901160	160	0.9	1	250	1455	20	No	0.858	Production
N901180	180	0.9	0.5	270	1635	20	No	0.961	Production
N901203	203	0.9	0.5	300	2015	15	No	1.08	Good
N901250	250	0.9	0.3	440	2840	10	Yes	0.669	Production
N901254	254	0.9	0.3	440	2885	10	Yes	0.690	Production
N901305	305	0.9	0.2	530	4295	10	Yes	0.990	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 for further details!
