Next 15 ET Transparent Ether-TPU Hose with TPU-Coated AISI 302 INOX Steel Helix

Product Code: N5ET

Next 15 ET - Ether-Based TPU Hose | Food Grade, Antistatic

Description

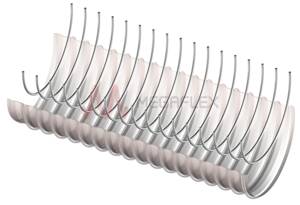

Next 15 ET — a transparent ether-based TPU hose reinforced with a TPU-coated AISI 302 Inox steel spiral with a constant wall thickness of 1.5mm. This hose features permanent antistatic properties (R<10⁹ Ohm/m) and a completely smooth inner surface to enhance flow properties. It is designed for the light suction of abrasive media in the food and pharmaceutical industries. The hose offers excellent resistance to UV rays, microbes, and hydrolysis, and is highly neutral in taste and odor, preserving the organoleptic properties of the medium conveyed. It is conductive by grounding the spiral (R<10² Ohm/m) and is food grade, compliant with EU 10/2011 and FDA CFR 21-Item 177.2600.

Key Features:

Applications: Food processing and pharmaceutical industry.
Mediums: Suitable for light suction of abrasive media in food and pharmaceutical applications.
Properties: Transparent, ether-based TPU, antistatic, UV, microbe and hydrolysis resistant, smooth inner surface, food grade.
Diameter Range: 40-203.2 mm.

Choose Next 15 ET for a high-quality, safe, and efficient solution in food processing and pharmaceutical applications. Bore Finish: Smooth

Food Quality

FDA regulations (Title 21 CFR 177.2600 Part E for aqueous foods).
EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
EU Regulation 10/2011 Food Simulant D1: Alcohol content >20% and oil-in-water emulsions.
EU Regulation 10/2011 Food Simulant D2: Foods with free fats at the surface.
EU Regulation 10/2011 Food Simulant E: Testing specific migration into dry foods.

Suitable Media

Abrasive media
Food
Pharmaceuticals
Granulates
Food powders
Animal feed
Granules
Grains
Sugar
Salt
Dry fruit
Fatty food
Abrasive powders
Food liquids
Drinks
Dairy products
Milk
Dry food
Powders
Beverages
Fruit juices
Wine
Liquors
By-products
Water
Vinegar
Spirits
Chemicals

Applications

Food industry
Pharmaceutical industry
Cosmetics
Street cleaning
Leaf collection
Paddock cleaning
Dust extraction
Plastics industry
Glass making
Ceramics
Woodworking
Sawmills
Granule drying
Printing and paper industries
Liquid food industry
Wine making
Brewery
Chemical industry

Temperature

-40°C to 90°C

Electrical Resistance

Conductive to 10² Ω/m by grounding the copper braid wire.

Construction

Wall: Ether-TPU
Helix: TPU-Coated AISI 302 INOX Stainless steel

Certification

EU 10/2011
FDA 21 CFR 177.2600
RoHS
REACH

Available Colours

Clear

Part	Inner Diameter	Wall Thickness	Vacuum Rating	Bend Radius	Weight	Length	Volume	Availability

N5ET040	40	1.5	9.5	90	415	30	0.122	Production
N5ET045	45	1.5	9	90	540	30	0.137	Production
N5ET052	50.8	1.5	9	90	590	30	0.189	Good
N5ET060	60	1.5	8.5	95	705	30	0.219	Production
N5ET063	63.5	1.5	8	100	785	30	0.312	Good
N5ET065	65	1.5	7.5	100	800	30	0.319	Production
N5ET076	76.2	1.5	7	110	965	30	0.370	Good
N5ET080	80	1.5	6	110	1010	30	0.386	Good
N5ET090	90	1.5	5	115	1130	20	0.286	Production
N5ET100	100	1.5	4	120	1155	20	0.315	Production
N5ET102	102	1.5	4	120	1175	20	0.321	Good
N5ET110	110	1.5	3.2	130	1265	20	0.516	Production
N5ET120	120	1.5	3	150	1310	20	0.559	Good
N5ET127	127	1.5	2.9	150	1380	20	0.589	Production
N5ET140	140	1.5	2.4	170	1705	20	0.649	Production
N5ET152	152	1.5	2	200	1850	20	0.833	Production
N5ET160	160	1.5	1.8	250	1940	20	0.871	Production
N5ET180	180	1.5	1.5	300	2175	20	0.974	Production
N5ET203	203	1.5	1.2	300	2770	15	1.10	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 or email us at sales@megaflex.co.uk for further details!
