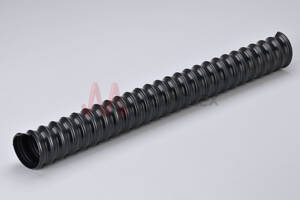

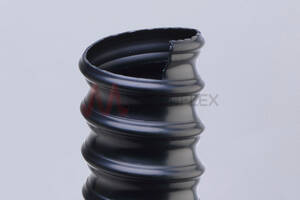

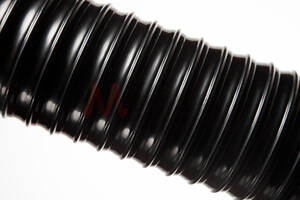

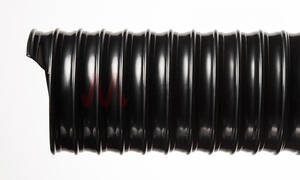

Vulcano 15 EL Electrically Conductive Ester-PU Ducting with PU-coated Steel Helix
Product Code: EC01
Description
Electrically conductive Ester based polyurethane hose reinforced with a PU coated steel wire to ensure a high adhesion. The constant wall thickness of 1.5mm for the whole diameters range makes the ducting suitable for heavy duty applications. Nearly smooth bore to ensure optimum flow characteristics. Ideal for delivery of highly abrasive media as powders, granules of different nature at high speed. This hose meets the requirements of ATEX Directives, in potentially explosive environments.
Properties
Ester-based Polyurethane reinforced with PU coated high adhesion steel spiral. Raw material with permanent electrical conductive features R<104 Ohm/metre according to ISO 8031. Flexible, excellent resistance to abrasion, most chemicals, UV rays, ozone. Halogen free conform to RoHS Regulation. Compliant with the requirements of ATEX Directives. Flexible and very resistant to abrasion. Halogen free.The hose is capable of transferring electrostatic charges when installed on properly earthed systems and becomes conductive R<102 Ohm/m by earthing the spiral.
The recommended method for secure and efficient connections are Single bridge clamps and Double bridge clamps Bore Finish: Corrugated
Temperature
- -40°C to 90°C, intermittently as high as 125°C
Suitable Media
- Pellets
- Chips
- Sawdust
- Fumes
- Abrasive dust
- Abrasive powders
Certification
- ATEX DIRECTIVE 2014/34/UE and 99/92/EC
- ISO 8031
- RoHS
- REACH
Electrical Resistance
- Conductive to 104 Ω/m by grounding the copper braid wire.
Applications
- Suction systems
- Ceramics
- Wood industry
Construction
- Wall: Ester-TPU
- Helix: TPU coated steel
Available Colours
- Black
| Part | Inner Diameter | Wall Thickness | Vacuum Rating | Bend Radius | Weight | Length | Volume | Availability |
|---|---|---|---|---|---|---|---|---|
| EC01038 | 38 | 1.5 | 9.5 | 40 | 530 | 20 | 0.068 | Production |
| EC01040 | 40 | 1.5 | 9.5 | 50 | 555 | 20 | 0.089 | Production |
| EC01045 | 45 | 1.5 | 9 | 50 | 620 | 20 | 0.098 | Production |
| EC01050 | 50 | 1.5 | 9 | 60 | 680 | 20 | 0.107 | Production |
| EC01051 | 51 | 1.5 | 9 | 60 | 690 | 20 | 0.109 | Production |
| EC01060 | 60 | 1.5 | 8.5 | 70 | 805 | 20 | 0.133 | Production |
| EC01063 | 63 | 1.5 | 8 | 70 | 840 | 20 | 0.185 | Production |
| EC01065 | 65 | 1.5 | 7.5 | 70 | 865 | 20 | 0.190 | Production |
| EC01070 | 70 | 1.5 | 7.5 | 80 | 1035 | 20 | 0.205 | Production |
| EC01075 | 75 | 1.5 | 7 | 80 | 1100 | 20 | 0.218 | Production |
| EC01076 | 76 | 1.5 | 7 | 90 | 1115 | 20 | 0.220 | Production |
| EC01080 | 80 | 1.5 | 6 | 90 | 1170 | 20 | 0.230 | Production |
| EC01090 | 90 | 1.5 | 5 | 100 | 1310 | 20 | 0.288 | Production |
| EC01100 | 100 | 1.5 | 4 | 120 | 1445 | 15 | 0.317 | Production |
| EC01102 | 102 | 1.5 | 3.5 | 120 | 1475 | 15 | 0.323 | Production |
| EC01110 | 110 | 1.5 | 3.2 | 130 | 1585 | 15 | 0.346 | Production |
| EC01152 | 152 | 1.5 | 1.8 | 180 | 2520 | 15 | 0.703 | Production |
| EC01160 | 160 | 1.5 | 1.8 | 180 | 2645 | 15 | 0.738 | Production |
| EC01203 | 203 | 1.5 | 1.2 | 230 | 3170 | 15 | 1.10 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
