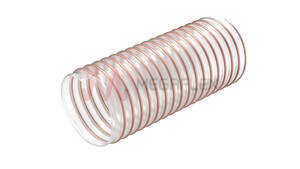

Vulcano PU HDS XP 23 Xflex - Ultra-Heavy Duty Clear Ester Polyurethane Ducting with PU-coated Coppered Steel Helix


Product Code: X401


Vulcano PU HDS XP 23 Ultra Heavy Duty Polyurethane Ducting

Description


Applications
Especially conceived to grant the maximum flexibility, even in severe application conditions. Its extra-flexibility allows an easy handling and extreme bending sessions. Indicated for highly abrasive substances, in plastic machines. Ideal as hose on vacuum cleaner trucks; to convey cement, in silos, docks, quarries, steelworks. Particularly suitable for civil shipyard, roof rocking and industrial and street cleaning.

Technical

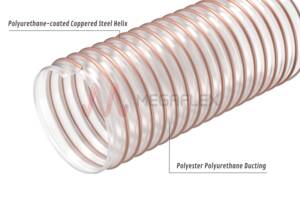

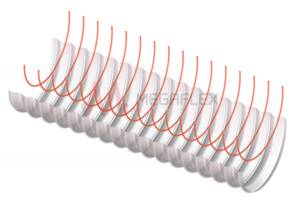

Special extra flexible ester-based Polyurethane duct reinforced with a PU coated coppered steel spiral. Smooth inside to ensure optimization of flow properties. Constant Wall thickness of 2.3mm through all the diameter range.

Properties
The PU-coated spiral allows a better adhesion and more bending sessions. Strong but very flexible. It keeps a really good flexibility also thanks to its low weight, it is suitable for heavy duty applications where a very good abrasion resistance is required. The duct is produced adding a microbes resistant additive. Resistant to abrasion and most chemicals, microbes, ageing, UV Rays, hydrolysis, ozone and atmospherical agents. Halogen free conform to RoHS and phthalates free.

Standards
By grounding the steel spiral, the duct is electrically bonded in accordance to TRB S 2153. The electrical resistance R ≤ 102 Ohm/m is according to ISO 8031 - ATEX Directive 94/4/EC and 99/92/EC). RoHS 2011/65/EU Directive, REACH Regulation (1907/2006).

Accessories
Single bridge clamps and Double bridge clamps

Temperature


  • -40°C to 90°C, intermittently as high as 125°C

Applications


  • Plastic machines
  • Street cleaning
  • Roof rocking
  • Shipyard
  • Silos
  • Docks
  • Quarries
  • Steelworks

Electrical Resistance


  • Conductive to 102 Ω/m by grounding the copper braid wire.

Construction


  • Wall: PU
  • Helix: Steel
  • Surface Finish: Smooth

Suitable Media


  • Cement
  • Abrasive materials

Available Colours


  • Clear
PartInner DiameterWall ThicknessBend RadiusWeightLengthVolumeAvailability
X401076762.33051760150.321Production
X4011021022.34102330150.486Production
X4011201202.34802730150.772Production
X4011271272.35103055150.901Production
X4011521522.3610357010Production
X4012032032.3526510Production
X4012502502.3647510Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 for further details!
