Zeus PU EST AS Antistatic Clear Ester-PU Ducting with Rigid PVC Helix (Heavy Duty) - Sandblast Recovery
Product Code: OZ02
Description
Suction of granules, pellets, gravel, sands. Can be used as sandblast recovery hose. Ideal for the suction and delivery of granules in the plastic industry.
Technical

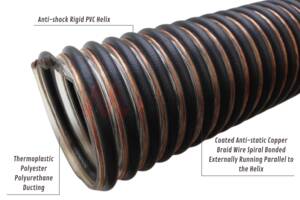

Ester based polyurethane hose, reinforced by an anti-shock rigid PVC spiral. Anti-static. Completely smooth inside to ensure optimisation of flow properties and corrugated outside. Wall thickness from 1.20mm to 2.00 mm.
Properties
High mechanical properties, very good resistance to abrasion and most chemicals. Specifically recommended to transfer abrasive media, it keeps high flexibility even at low temperature. Halogen free conform to RoHS, completely free from phthalates.
Standards
RoHS 2011/65/EU Directive, REACH Regulation (1907/2006). Manufactured in antistatic by adding a copper wire. By earthing the copper wire, the duct becomes electrically bonded. The electrical resistance R ≤ 102 Ohm/m is according to ISO 8031 - ATEX Directives. Bore Finish: Smooth
Temperature
- -40°C to 80°C
Applications
- Agriculture
- Dedusting
- Ceramics industry
- Industrial suction
- Plastics industry
- Woodworking
Suitable Media
- Abrasive dust
- Fibres
- Granules
- Pellets
- Powders
- Sawdust
- Woodchips
Certification
- ATEX DIRECTIVE 2014/34/UE and 99/92/EC
- ISO 8031
- RoHS
- REACH
Electrical Resistance
- Conductive to 102 Ω/m by grounding the copper braid wire.

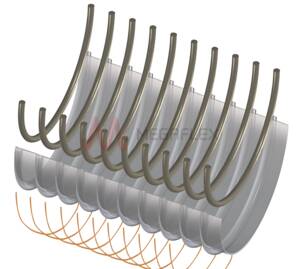

Construction
- Wall: Ester-TPU
- Helix: PVC
Available Colours
- Clear
- Grey
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Vacuum Rating | Bend Radius | Weight | Length | Volume | Availability |
|---|---|---|---|---|---|---|---|---|---|
| OZ02030 | 30 | 37.4 | 1.2 | 9 | 130 | 340 | 30 | 0.072 | Production |
| OZ02032 | 31.8 | 39.2 | 1.2 | 9 | 140 | 360 | 30 | 0.075 | Production |
| OZ02035 | 35 | 42.8 | 1.3 | 9 | 160 | 400 | 30 | 0.082 | Production |
| OZ02038 | 38.1 | 45.9 | 1.3 | 9 | 180 | 440 | 30 | 0.118 | Production |
| OZ02040 | 40 | 48.4 | 1.5 | 9 | 190 | 530 | 30 | 0.124 | Production |
| OZ02045 | 45 | 53.6 | 1.5 | 8 | 200 | 610 | 30 | 0.154 | Production |
| OZ02052 | 50.8 | 60.2 | 1.5 | 8 | 215 | 730 | 30 | 0.173 | Production |
| OZ02060 | 60 | 69.8 | 1.5 | 8 | 230 | 910 | 30 | 0.302 | Production |
| OZ02063 | 63.5 | 73.3 | 1.5 | 8 | 240 | 960 | 30 | 0.317 | Production |
| OZ02065 | 65 | 74.8 | 1.5 | 8 | 240 | 980 | 30 | 0.323 | Production |
| OZ02070 | 70 | 80.4 | 1.5 | 8 | 250 | 1020 | 30 | 0.347 | Production |
| OZ02076 | 76.2 | 87 | 1.7 | 8 | 270 | 1190 | 30 | 0.376 | Production |
| OZ02080 | 80 | 92 | 2 | 7 | 290 | 1400 | 30 | 0.397 | Production |
| OZ02090 | 90 | 102 | 2 | 7 | 380 | 1570 | 30 | 0.588 | Production |
| OZ02100 | 100 | 113 | 2 | 7 | 420 | 1740 | 30 | 0.649 | Production |
| OZ02102 | 102 | 115 | 2 | 7 | 420 | 1770 | 30 | 0.660 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
