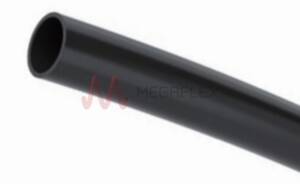

Durable Black PVC Sleeving for Mechanical and Electrical Protection
Product Code: S92PVC
Description
Polyvinyl chloride (PVC) extruded sleeving is engineered for flexibility, cost-effectiveness, and recyclability with improved resistance to temperature, addressing the critical needs of modern cabling systems.
Features and Applications
Designed to offer both mechanical protection and electrical insulation for cable harnesses, this PVC sleeving is vital in the automobile and industrial cabling sectors. Its flexibility ensures easy handling and installation, while its economical nature provides a cost-efficient solution for comprehensive cable management. The recyclability of the material also supports environmentally sustainable practices.Properties
The sleeving is characterised by its flexibility, making it adaptable to various installation needs. It is also economical, reducing costs in large-scale applications, and recyclable, contributing to environmental sustainability. The improved resistance to temperature allows for a broader range of applications, ensuring reliability under varying environmental conditions.Technical Specifications
Dielectric rigidity 16Kv/mm, Nominal density of 1.40, Tensile strength >16 Mpa, Elongation at break >210%Customisation Options (minimum order quantities apply): Other colours, Pre-split versions, Additives: Anti-UV. Bore Finish: Smooth Shore Hardness: 92 Shore A
Temperature
- -15°C to 105°C
Applications
- Mechanical Protection
- Electrical Protection
- Cable Harnesses
- Cable Management
- Automotive
- Industrial Cabling
Certification
- NF EN 60684-2
- ISO R 868
- ISO 1183
- ISO R 527

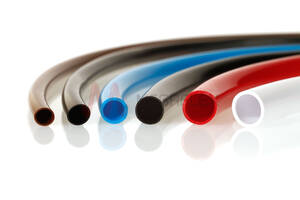

Available Colours
- Black
Construction
- Wall: PVC
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Weight | Length | Availability |
|---|---|---|---|---|---|---|
| S92PVC001001 | 0.5 | 1.2 | 0.35 | 1 | 500 | Production |
| S92PVC001002 | 1 | 1.8 | 0.4 | 2 | 500 | Production |
| S92PVC002002 | 1.5 | 2.3 | 0.4 | 3 | 500 | Production |
| S92PVC002003X | 2 | 2.8 | 0.4 | 4 | 500 | Production |
| S92PVC002003 | 2 | 3 | 0.5 | 5 | 500 | Production |
| S92PVC003003 | 2.5 | 3.3 | 0.4 | 5 | 500 | Production |
| S92PVC003004X | 3 | 3.8 | 0.4 | 6 | 500 | Production |
| S92PVC003004 | 3 | 4 | 0.5 | 8 | 500 | Production |
| S92PVC004004 | 3.5 | 4.3 | 0.4 | 7 | 500 | Production |
| S92PVC004005X | 4 | 4.8 | 0.4 | 9 | 500 | Production |
| S92PVC004005 | 4 | 5 | 0.5 | 10 | 500 | Production |
| S92PVC005006X | 5 | 5.8 | 0.4 | 9 | 500 | Production |
| S92PVC005006 | 5 | 6 | 0.5 | 12 | 500 | Production |
| S92PVC006007 | 6 | 6.9 | 0.45 | 13 | 400 | Production |
| S92PVC007008 | 7 | 8 | 0.5 | 16 | 250 | Production |
| S92PVC008009 | 8 | 9 | 0.5 | 19 | 250 | Production |
| S92PVC009010 | 9 | 10 | 0.5 | 21 | 200 | Production |
| S92PVC010011 | 10 | 11 | 0.5 | 23 | 150 | Production |
| S92PVC011012 | 11 | 12 | 0.5 | 25 | 100 | Production |
| S92PVC012013 | 12 | 13.1 | 0.55 | 30 | 100 | Production |
| S92PVC013014 | 13 | 14.2 | 0.6 | 36 | 100 | Production |
| S92PVC014015 | 14 | 15.2 | 0.6 | 39 | 50 | Production |
| S92PVC015016 | 15 | 16.2 | 0.6 | 41 | 50 | Production |
| S92PVC016017 | 16 | 17.3 | 0.65 | 48 | 50 | Production |
| S92PVC018020 | 18 | 19.5 | 0.75 | 62 | 50 | Production |
| S92PVC020022 | 20 | 22 | 1 | 92 | 50 | Production |
| S92PVC022024 | 22 | 24 | 1 | 101 | 50 | Production |
| S92PVC024026 | 24 | 26 | 1 | 110 | 50 | Production |
| S92PVC025027 | 25 | 27 | 1 | 114 | 50 | Production |
| S92PVC026028 | 26 | 28 | 1 | 119 | 25 | Production |
| S92PVC028030 | 28 | 30 | 1 | 127 | 25 | Production |
| S92PVC030032 | 30 | 32 | 1 | 136 | 25 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
