Black Santoprene Sleeving Durable Protection for Cable Harnesses Fire-Retardant
Product Code: S75TPE
Description

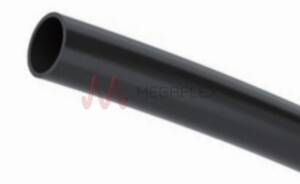

Santoprene® type polymer extruded sleeving distinguishes itself with its fire-retardant properties, resistance to high temperatures, exceptional weather resistance, and recyclability, making it an advanced solution for demanding environments.
Features and Applications
Specially designed for cable harness protection, the Santoprene® sleeving is highly regarded in industries such as automobile and industrial cabling. It offers a superior blend of fire safety, temperature resistance, and durability against environmental factors, ensuring cables remain protected in various conditions.Properties
This sleeving is characterised by its fire-retardant qualities, high-temperature resistance, and excellent weather resistance. These properties make it a reliable choice for protecting cables against extreme conditions while being environmentally friendly due to its recyclability.Technical Specifications

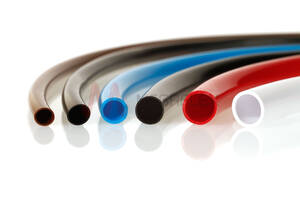

Boasting a standard black colour for versatile application, the sleeving complies with rigorous technical specifications. It features a wide temperature usage range, high dielectric rigidity 18Kv/mm for effective insulation, Nominal density of 1.22, Tensile strength >8.7 Mpa, Elongation at break >520%Customisation Options (minimum order quantities apply): Other colours. Bore Finish: Smooth Shore Hardness: 75 Shore A
Temperature
- -40°C to 125°C
Applications
- Mechanical Protection
- Electrical Protection
- Cable Harnesses
- Cable Management
- Automotive
- Industrial Cabling
Certification
- UL94 V0
- UL94 V2
- ISO 45089-2
- ISO R 868
- ISO 1183
- ISO 37
Construction
- Wall: Santoprene
Available Colours
- Black
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Weight | Length | Availability |
|---|---|---|---|---|---|---|
| S75TPE002003 | 2 | 3 | 0.5 | 5 | 500 | Production |
| S75TPE003004 | 3 | 4 | 0.5 | 7 | 500 | Production |
| S75TPE004005 | 4 | 5 | 0.5 | 9 | 500 | Production |
| S75TPE005006 | 5 | 6 | 0.5 | 11 | 500 | Production |
| S75TPE006007 | 6 | 7 | 0.5 | 12 | 400 | Production |
| S75TPE007008 | 7 | 8 | 0.5 | 14 | 250 | Production |
| S75TPE008009 | 8 | 9 | 0.5 | 16 | 250 | Production |
| S75TPE009010 | 9 | 10 | 0.5 | 18 | 200 | Production |
| S75TPE010012 | 10 | 12 | 1 | 42 | 150 | Production |
| S75TPE011013 | 11 | 13 | 1 | 46 | 100 | Production |
| S75TPE012014 | 12 | 14 | 1 | 50 | 100 | Production |
| S75TPE013015 | 13 | 15 | 1 | 54 | 100 | Production |
| S75TPE014016 | 14 | 16 | 1 | 57 | 50 | Production |
| S75TPE015017 | 15 | 17 | 1 | 61 | 50 | Production |
| S75TPE016018 | 16 | 18 | 1 | 65 | 50 | Production |
| S75TPE018020 | 18 | 20 | 1 | 73 | 50 | Production |
| S75TPE020022 | 20 | 22 | 1 | 80 | 50 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
