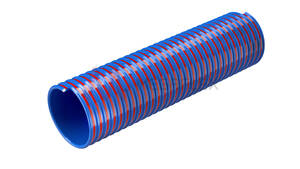

Apollo SE Blue with Red Helix PVC S&D Hose with Rigid PVC Helix (Medium Duty)
Product Code: AX01
Description
Our PVC Hose with Anti-Shock Spiral Reinforcement is designed for superior suction capabilities, ideal for use on tank trucks due to its robust physical-mechanical properties.
Features and Applications

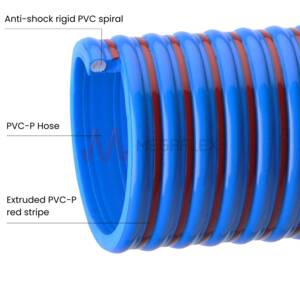

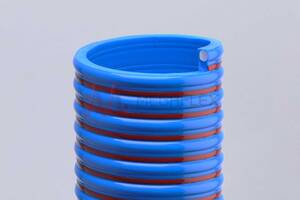

Excellent as a general suction house, particularly suitable to be used on tank trucks thanks to its physical-mechanical features. It's reinforced with an anti-shock rigid PVC spiral, offering a completely smooth interior for efficient fluid transfer and a slightly corrugated exterior for added durability.
Properties
Particularly suitable to be used even at low temperatures, it boasts high mechanical properties, flexibility, and resistance to torsion, crushing, weather conditions, ageing, ozone, UV rays, and most chemicals.
An antistatic version is available - incorporating a copper wire for electrical bonding, with an electrical resistance of R ≤ 102 Ohm/m, compliant with ISO 8031 and ATEX Directives, ensuring compliance with environmental and safety standards. Bore Finish: Smooth
Temperature
- -25°C to 60°C
Suitable Media
- Fungicide solutions
- Fertilisers
- Herbicides
- Pesticides
- Compressed air
- Water
- Liquid
- Chemicals
- Slurry
- Wastewater
Applications
- Farming
- Waste management
- Agriculture
- Irrigation
- Spraying
- General suction tasks

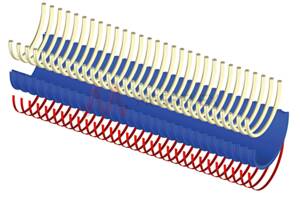

Construction
- Wall: PVC-P
- Helix: PVC
Available Colours
- Blue
- Red
Certification
- RoHS
- REACH
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Vacuum Rating | Bend Radius | Weight | Length | Volume | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AX01019 | 19.1 | 26.3 | 3.2 | 7 | 21 | 10 | 80 | 290 | 50 | 0.057 | Production |
| AX01020 | 20 | 27.2 | 3.2 | 7 | 21 | 10 | 80 | 300 | 50 | 0.059 | Production |
| AX01025 | 25 | 32.8 | 3.4 | 6 | 18 | 10 | 100 | 400 | 50 | 0.094 | Good |
| AX01030 | 30 | 38.6 | 3.9 | 6 | 18 | 10 | 120 | 540 | 50 | 0.124 | Good |
| AX01032 | 31.8 | 40.4 | 3.9 | 6 | 18 | 10 | 130 | 570 | 50 | 0.129 | Good |
| AX01035 | 35 | 43.8 | 3.9 | 5 | 15 | 10 | 140 | 620 | 50 | 0.140 | Production |
| AX01038 | 38.1 | 46.9 | 3.9 | 5 | 15 | 10 | 155 | 670 | 50 | 0.180 | Good |
| AX01039 | 39 | 47.8 | 3.9 | 5 | 15 | 10 | 155 | 680 | 50 | 0.184 | Production |
| AX01040 | 40 | 48.8 | 3.9 | 5 | 15 | 10 | 160 | 700 | 50 | 0.187 | Good |
| AX01045 | 45 | 54.2 | 4.1 | 4 | 12 | 10 | 180 | 830 | 50 | 0.234 | Production |
| AX01050 | 50 | 59.6 | 4.3 | 4 | 12 | 10 | 200 | 950 | 50 | 0.257 | Good |
| AX01051 | 51.5 | 61.1 | 4.3 | 4 | 12 | 10 | 200 | 980 | 50 | 0.264 | Production |
| AX01052 | 50.8 | 60.4 | 4.3 | 4 | 12 | 10 | 200 | 970 | 50 | 0.261 | Good |
| AX01055 | 55 | 65 | 4.4 | 4 | 12 | 9 | 220 | 1080 | 50 | 0.374 | Production |
| AX01057 | 57 | 67 | 4.4 | 4 | 12 | 9 | 230 | 1120 | 50 | 0.386 | Production |
| AX01060 | 60 | 70.2 | 4.5 | 4 | 12 | 9 | 240 | 1210 | 50 | 0.404 | Good |
| AX01063 | 63.5 | 74.3 | 4.8 | 4 | 12 | 9 | 260 | 1370 | 50 | 0.428 | Good |
| AX01065 | 65 | 76.2 | 4.9 | 3 | 9 | 9 | 270 | 1450 | 50 | 0.439 | Production |
| AX01070 | 70 | 81.6 | 5 | 3 | 9 | 9 | 280 | 1560 | 50 | 0.588 | Good |
| AX01076 | 76.2 | 88.4 | 5 | 3 | 9 | 9 | 310 | 1750 | 50 | 0.636 | Good |
| AX01080 | 80 | 92.6 | 5.1 | 3 | 9 | 9 | 320 | 1860 | 0.667 | Good | |
| AX01090 | 90 | 103 | 5.3 | 3 | 9 | 9 | 360 | 2190 | 30 | 0.594 | Good |
| AX01100 | 100 | 115 | 6.1 | 3 | 9 | 9 | 410 | 2830 | 30 | 0.885 | Good |
| AX01102 | 102 | 117 | 6.1 | 3 | 9 | 9 | 410 | 2880 | 30 | 0.900 | Good |
| AX01103 | 104 | 119 | 6.1 | 3 | 9 | 9 | 410 | 2920 | 30 | 0.912 | Production |
| AX01105 | 105 | 120 | 6.1 | 3 | 9 | 9 | 430 | 2990 | 30 | 0.925 | Production |
| AX01110 | 110 | 125 | 6.1 | 3 | 9 | 9 | 450 | 3090 | 30 | 0.963 | Good |
| AX01120 | 120 | 136 | 6.3 | 2.5 | 7.5 | 9 | 480 | 3480 | 30 | 1.04 | Good |
| AX01125 | 125 | 141 | 6.3 | 2.5 | 7.5 | 9 | 510 | 3620 | 30 | 1.08 | Production |
| AX01127 | 127 | 143 | 6.3 | 2.5 | 7.5 | 9 | 510 | 3670 | 30 | 1.10 | Good |
| AX01130 | 130 | 147 | 7 | 2.5 | 7.5 | 8 | 530 | 4080 | 30 | 1.13 | Production |
| AX01133 | 133 | 150 | 7 | 2.5 | 7.5 | 8 | 530 | 4170 | 30 | 1.53 | Production |
| AX01150 | 152 | 169 | 7.4 | 2 | 6 | 8 | 610 | 4990 | 20 | 1.35 | Good |
| AX01152 | 152 | 170 | 7.4 | 2 | 6 | 8 | 610 | 5020 | 20 | 1.36 | Good |
| AX01160 | 160 | 179 | 7.9 | 2 | 6 | 7 | 660 | 5500 | 20 | 1.43 | Production |
| AX01200 | 200 | 225 | 11 | 1.5 | 4.5 | 7 | 850 | 9670 | 10 | 1.80 | Production |
| AX01203 | 203 | 228 | 11 | 1.5 | 4.5 | 7 | 850 | 9810 | 10 | 1.82 | Production |
| AX01250 | 250 | 276 | 11 | 1.23 | 3.7 | 7 | 1500 | 12270 | 10 | 0.760 | Production |
| AX01254 | 254 | 280 | 11 | 1.23 | 3.7 | 7 | 1500 | 12460 | 10 | 0.782 | Production |
| AX01300 | 300 | 327 | 11.5 | 1 | 3 | 5 | 1800 | 15350 | 10 | 1.07 | Production |
| AX01305 | 305 | 331 | 11.5 | 1 | 3 | 5 | 1800 | 15590 | 10 | 1.10 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
