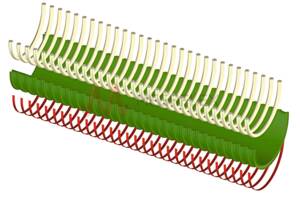

Apollo SE Special General Purpose PVC S&D Hose with Rigid PVC Helix
Product Code: AX20
Description
Our green with a red stripe PVC Hose with Anti-Shock Spiral Reinforcement, is tailored for general suction, particularly ideal for use on tank trucks due to its robust physical-mechanical properties.
Features and Applications
Excellent for suction in general, particularly suitable to be used on tank trucks thanks to its physical-mechanical features. It features a PVC construction reinforced with an anti-shock rigid PVC spiral, providing a completely smooth interior for efficient fluid transfer and a slightly corrugated exterior for added durability. This hose is strong, flexible, and resistant to crushing, abrasion, atmospheric agents, and most chemicals. An antistatic version is available upon request.
Properties
Particularly suitable for use even at low temperatures, it boasts high mechanical properties, flexibility, and resistance to torsion, crushing, weather conditions, aging, ozone, UV rays, and most chemicals.
An antistatic version is available, which includes a copper wire for electrical bonding, with an electrical resistance of R ≤ 102 Ohm/m, adhering to ISO 8031 and ATEX Directives, ensuring environmental and safety standards are met. Bore Finish: Smooth
Temperature
- -25°C to 60°C
Suitable Media
- Fungicide solutions
- Fertilisers
- Herbicides
- Pesticides
- Compressed air
- Water
- Liquid
- Chemicals
- Slurry
- Wastewater
Applications
- Farming
- Waste management
- Agriculture
- Irrigation
- Spraying
- General suction tasks
Construction
- Wall: PVC
- Helix: PVC
Available Colours
- Green
- Red
Certification
- RoHS
- REACH
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Vacuum Rating | Bend Radius | Weight | Length | Volume |
|---|---|---|---|---|---|---|---|---|---|---|
| AX20052 | 52 | 61 | 3.6 | 3 | 9 | 10 | 200 | 850 | 30 | 0.31 |
| AX20076 | 76 | 88.2 | 4.2 | 3 | 9 | 10 | 310 | 1500 | 30 | 0.642 |
| AX20080 | 80 | 91.2 | 4.2 | 3 | 9 | 10 | 320 | 1650 | 30 | 0.715 |
| AX20100 | 100 | 113 | 4.6 | 2 | 6 | 10 | 410 | 2160 | 30 | 0.762 |
| AX20102 | 102 | 115 | 4.6 | 2 | 6 | 10 | 410 | 2200 | 30 | 0.776 |
| AX20110 | 110 | 124 | 5 | 2 | 6 | 9 | 450 | 2650 | 30 | 0.954 |
| AX20127 | 127 | 142 | 5.2 | 2 | 6 | 9 | 510 | 3200 | 30 | 1.23 |
| AX20133 | 133 | 148 | 5.3 | 2 | 6 | 9 | 510 | 3400 | 30 | 1.28 |
| AX20152 | 152 | 169 | 6 | 2 | 6 | 9 | 610 | 4390 | 20 | 1.32 |
| AX20203 | 203 | 227 | 8.4 | 1.5 | 4.5 | 9 | 850 | 8660 | 10 | 2.19 |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
