Extra-Flexible Chemical Suction and Delivery Hose for Food and Explosive Zones

Description

The Extra-Flexible Mandrel Built Chemical Suction and Delivery Hose is designed for transferring acids, bases, ketones, aldehydes, esters, and aromatic, aliphatic, and chlorinated hydrocarbons, as well as animal or vegetable foodstuffs and alcoholic drinks. Compliant with EN 12115 – Type Ω/T, it’s suited for chemical plants, food processing, or beverage industries.

Featuring a constant 16 Bar working pressure across sizes from 19mm to 102mm inner diameters, this hose offers a 4:1 safety factor and a minimum 6mm wall thickness. It withstands tensile stress of 4,000 N (approx. 400 kg) with only 3.5% temporary diameter reduction and is certified for explosive environments per DEKRA report 16EXAM11132 BVS-bk (zones 0, 1, 2 per IEC/TS 60079-32-1:2016, TRGS 727:2016, EN ISO 8031:2010).

Master Versatile Transfers with This Hose

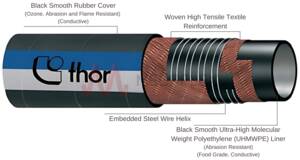

• Conductive Tube: Black smooth UHMWPE, abrasion-resistant, FDA food-quality.
• Robust Cover: Special black conductive rubber, resists weather, ozone, abrasion, and flames (TRbF 131 – Teil 2 - § 5.5).
• Reinforced Design: High tensile textile plies with steel helix wire.
• Pressure Stability: 16 Bar across all sizes.
• Size Range: 19mm to 102mm ID with 6mm minimum wall thickness.
• Explosive Safety: Certified for zones 0, 1, 2 with patented design (MI2002A001311).

This hose excels in demanding chemical and food applications. The conductive UHMWPE tube handles aggressive chemicals or foodstuffs like oils and spirits, ideal for suction in explosive zones or delivery in dairies, while the flame-resistant cover ensures safety and durability. Its patented flexible design, with steel helix reinforcement, supports heavy-duty use in industrial transfers or food processing, offering resilience and reliability in volatile or hygienic settings.
