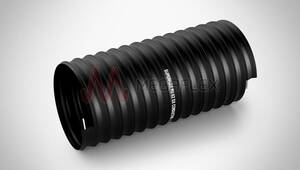

Superflex KZ - Self-Extinguishing PVC S&D Hose Reinforced with Galvanised Steel Helix

Product Code: 913009

Superflex KZ - Self-Extinguishing PVC S&D Hose with Galvanised Steel Helix

Description

Soft PVC hose with galvanised steel spiral, self-extinguishing according to UL 94/VO, for suction and transport of air, dusts, gas, chips.

Temperature

-5°C to 60°C

Electrical Resistance

Antistatic ✔

Available Colours

Black

Part	Inner Diameter	Inner Diameter	Outer Diameter	Wall Thickness	Working Pressure	Vacuum Rating	Bend Radius	Weight	Length	Spiral Dimensions	Spiral Pitch
	″									mm x mm
913009025		25	30	0.4	2	5	25	120	80	0.8	8
913009030		30	35	0.4	1.8	5	30	150	80	0.8	8
913009032	1¹⁄₄	32	38	0.5	1.6	4.8	32	160	50	1	10
913009035		35	40	0.5	1.5	4.5	35	180	50	1	10
913009038	1¹⁄₂	38	43	0.5	1.3	4.2	38	190	50	1	10
913009040		40	45	0.5	1.2	4	40	200	50	1	10
913009045	1³⁄₄	45	50	0.5	1.2	3.8	45	220	50	1	10
913009050	2	50	55	0.55	1	3.2	50	280	50	1.2	12
913009055		55	60	0.55	1	3	55	300	50	1.2	12
913009057		57	62	0.55	0.9	2.9	57	310	50	1.2	12
913009060		60	65	0.55	0.8	2.8	60	320	50	1.2	12
913009063		63	68	0.55	0.8	2.2	63	350	30	1.2	12
913009065		65	70	0.55	0.8	2.2	65	380	30	1.2	12
913009067		67	72	0.55	0.8	2.2	67	400	30	1.2	12
913009070		70	77	0.6	0.7	2	70	450	30	1.4	14
913009076		76	83	0.6	0.7	1.8	76	480	30	1.4	14
913009080		80	87	0.6	0.6	1.8	80	520	30	1.4	14
913009089	3¹⁄₂	89	96	0.6	0.6	1.6	89	560	30	1.4	14
913009098		98	103	0.65	0.5	1.3	98	700	30	1.6	16
913009100		100	107	0.65	0.5	1.3	100	720	30	1.6	16
913009110		110	117	0.65	0.5	1.2	110	760	30	1.6	16
913009120		120	127	0.65	0.5	1.2	120	820	30	1.6	16
913009125		125	132	0.65	0.4	1.2	125	850	30	1.6	16
913009130		130	137	0.65	0.4	1.1	130	900	30	1.6	16
913009140		140	147	0.65	0.4	1.1	140	950	30	1.6	16
913009150		150	157	0.7	0.3	1	150	1200	30	1.8	18
913009160		160	167	0.7	0.3	1	160	1250	30	1.8	18
913009180		180	187	0.7	0.3	1	180	1400	30	1.8	18
913009200		200	207	0.7	0.2	1	200	1600	30	1.8	18
913009250		250	259	0.8	0.2	0.5	250	1900		2	22
913009280		280	289	0.8	0.1	0.5	280	2100		2	22
913009300		300	309	0.8	0.1	0.4	300	2250		2	22
913009350		350	359	0.8	0.1	0.4	350	2600		2	22
913009400		400	409	0.8	0.1	0.4	400	3000		2	22

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 or email us at sales@megaflex.co.uk for further details!
