Giove SE AS PVC-P Hose Reinforced with Rigid PVC Helix for Agriculture

Product Code: GI16

Giove SE AS - Low Temperature PVC-P Hose | Chemically Robust

Description

Introducing Giove SE AS PVC-P hose reinforced with an anti-shock rigid PVC spiral, offering enhanced performance compared to the Apollo hose. This hose is specially formulated to be suitable for use at low temperatures. It features a smooth inside surface and light corrugation outside, providing strength, flexibility, resistance to crushing, abrasion, atmospheric agents, and most chemicals. The Giove SE AS is ideal for the suction and delivery of water, slurry, mud, mixtures of wood, acids, latex, grains, and other materials in agriculture and industry, and is particularly suitable for use on tank trucks.

Key Features:

Applications: Suction and delivery of various materials in agriculture and industry, particularly suitable for tank trucks.
Mediums: Suitable for water, slurry, mud, mixtures of wood, acids, latex, grains, and other materials.
Properties: Suitable for low temperatures, anti-shock, resistant to crushing, abrasion, atmospheric agents, and most chemicals.

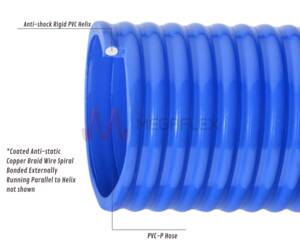

Antistatic: Can be made electrically bonded by earthing the copper spiral. The electrical resistance R ≤ 10² Ohm/m.
Diameter Range: 25-304.8 mm.

Choose Giove SE AS for a durable and versatile solution in various agricultural and industrial applications. Bore Finish: Smooth

Temperature

-25°C to 60°C

Suitable Media

Water
Slurry
Mud
Mixtures of wood
Acids
Latex
Grains

Electrical Resistance

Conductive to 10² Ω/m by grounding the copper braid wire.

Applications

Agriculture
Industry
Tank trucks

Construction

Wall: PVC-P
Helix: PVC

Certification

RoHS
REACH

Available Colours

Blue

Part	Inner Diameter	Outer Diameter	Wall Thickness	Working Pressure	Burst Pressure	Vacuum Rating	Bend Radius	Weight	Length	Volume	Availability

GI16025	25	34.4	4.39	8	24	10	130	530	50	0.110	Production
GI16030	30	39.6	4.49	8	24	10	150	640	50	0.127	Production
GI16032	31.8	41.4	4.49	8	24	10	160	670	50	0.132	Production
GI16035	35	44.8	4.5	8	24	10	170	720	50	0.143	Production
GI16038	38.1	47.9	4.5	7	21	10	200	780	50	0.184	Production
GI16040	40	49.8	4.5	7	21	10	210	820	50	0.191	Production
GI16045	45	55.4	4.8	7	21	10	230	980	50	0.248	Production
GI16050	50	61.2	5.2	7	21	10	260	1180	50	0.264	Production
GI16052	50.8	62	5.2	7	21	10	260	1190	50	0.268	Production
GI16055	55	66.8	5.5	6	18	10	280	1370	50	0.385	Production
GI16060	60	72.4	5.7	6	18	10	320	1570	50	0.417	Production
GI16063	63.5	75.9	5.7	5	15	10	330	1650	50	0.437	Production
GI16070	70	82.6	5.8	5	15	10	360	1790	50	0.714	Production
GI16076	76.2	88.8	5.8	4.5	13.5	10	400	1940	50	0.767	Production
GI16080	80	93.2	6.1	4.5	13.5	10	430	2120	30	0.671	Good
GI16090	90	104	6.4	4.5	13.5	10	470	2500	30	0.747	Good
GI16100	100	116	7.3	4	12	9	510	3190	30	0.889	Production
GI16102	102	118	7.3	4	12	9	510	3250	30	0.905	Good
GI16105	105	121	7.3	4	12	9	520	3340	30	0.928	Production
GI16110	110	126	7.4	4	12	9	550	3520	30	0.968	Production
GI16120	120	136	7.5	4	12	9	600	3880	30	1.39	Production
GI16127	127	143	7.5	3.5	10.5	9	640	4090	30	1.47	Production
GI16150	152	172	9.2	3	9	9	770	6120	20	1.37	Production
GI16200	200	225	10.9	2	6	7	1000	9770	10	2.18	Production
GI16203	203	229	11	2	6	7	1000	10020	10	2.21	Production
GI16250	250	276	11.4	1.5	4.5	7	1700	12770	10	0.764	Production
GI16254	254	280	11.4	1.5	4.5	7	1700	12960	10	0.786	Production
GI16300	300	327	11.7	1	3	5	2200	15740	10	1.07	Production
GI16305	305	332	11.8	1	3	5	2200	16130	10	1.10	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 or email us at sales@megaflex.co.uk for further details!
