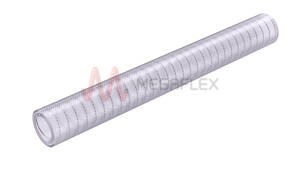

High Pressure Plasticized PVC S&D Hose with Steel Helix and Polyester Yarn
Product Code: PR
Description
Plasticised PVC hose with double reinforcement: inside a steel spiral, outside a polyester yarn. Inside smooth surface. Very flexible, resistant to weather agents and to most chemicals. For use in arduous applications where a higher working pressure and vacuum rating is required. For the suction and delivery of food based liquids defined by European directive 90/128/CEE class A, B and C. Transparent with an extruded red stripe. Bore Finish: Smooth
Food Quality
- FDA regulations (Title 21 CFR 177.2600 Part E for aqueous foods).
- EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
- EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
- EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
- EU Regulation 10/2011 Food Simulant D1: Alcohol content >20% and oil-in-water emulsions.
- Suitable for alcohol up to 50%.
Temperature
- -10°C to 60°C
Certification
- ATEX DIRECTIVE 2014/34/UE and 99/92/EC
- ISO 8031
- EU 10/2011
- FDA 21 CFR 176.170
- RoHS
- REACH
Suitable Media
- Food liquids
- Beverages
- Fruit juices
- Wine
- Liquors
- Milk
- By-products

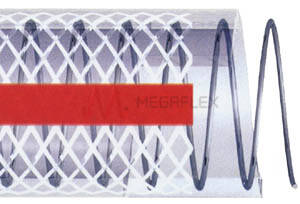

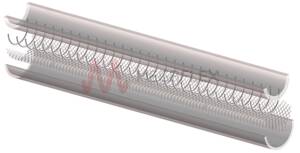

Construction
- Wall: Special bio-based compound
- Reinforcement: Polyester
- Helix: Steel
Applications
- Filling Machines
- Dispensers
- Food industry
- Wine industry
Electrical Resistance
- Conductive to 102 Ω/m
Available Colours
- Clear
- Red
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Vacuum Rating | Bend Radius | Weight | Length | Volume | Colour | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PR01010 | 10 | 18 | 4 | 22 | 66 | 10 | 30 | 245 | 60 | 0.033 | Clear | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
