Heavy Duty Black EPDM S&D Hose 16 Bar with Steel Helix and Textile Plies
Product Code: T1716EP

Description
The Heavy Duty High Temperature Water Suction and Delivery Hose is your ultimate partner for tackling the toughest fluid transfer challenges. Perfect for hot water applications like boiler bypass circuits and steam systems, it’s equally adept at moving seawater in marine settings or handling acids and solvents in industrial workshops. Built with a 3:1 safety ratio, this hose offers peace of mind, ensuring you can push it to the limit without worry.
Whether you’re suctioning paints with water or ketone bases for a flawless finish, delivering neutral acid solutions in a processing plant, or managing high-temperature water in heat pump setups, this hose rises to the occasion. Available in sizes from 19mm to 102mm ID, it’s a versatile workhorse designed to keep your operations flowing smoothly across a wide range of demanding environments.
Why You Need This Hose
- Heat-Resistant: Ideal for steam, heat pumps, and boiler circuits.
- Versatile: Handles rust inhibitors, water treatments, and more.
- Durable: Mandrel-built for strength and flexibility, handling 10 Bar working pressure and 0.9 Bar vacuum.
- Sizes: 19mm to 102mm Inner Diameters.
- Conductive Lining: Smooth EPDM Conductive lining for excellent flow, chemical-ready.
- Reinforcement: High tensile textile plies and a steel wire helix for good measure.
- Cover: Smooth black conductive EPDM rubber, abrasion, ozone, weather and heat resistant.
This isn’t just a hose – it’s a game-changer for tough conditions. Whether you’re managing a high-stakes industrial setup, battling the elements on a marine job, or keeping a heating system running smoothly, this hose delivers every time. Its sleek, rugged design means it’s ready to take on the heat, the pressure, and the mess without flinching. Don’t settle for less when you can have a hose that’s as relentless as you are – grab this powerhouse and feel the difference it makes on your next project. Contact us now!
Bore Finish: SmoothApplications
- Steam pumps
- Boiler bypass circuits
- Steam systems
- Marine seawater transfer
- Industrial workshops
- Heat pump setups
- Processing plants
- Painting systems
- Rust inhibitor delivery
- Water treatment systems
- Chemical processing
Temperature
- -40°C to 120°C
Suitable Media
- Hot water
- Steam
- Seawater
- Acids
- Solvents
- Paints with water base
- Paints with ketone base
- Neutral acid solutions
- Rust inhibitors
- Water treatment chemicals
- Basic solutions

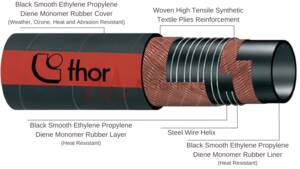

Construction
- Inner Layer: EPDM
- Outer Cover: EPDM
- Reinforcement: High tensile textile plies
- Helix: Steel
Electrical Resistance
- Antistatic ✔
Available Colours
- Black
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Vacuum Rating | Bend Radius | Weight | Length | Availability |
|---|---|---|---|---|---|---|---|---|---|---|
| T1716EP/19 | 19 | 29 | 5 | 16 | 55 | 8 | 115 | 590 | 40 | Good |
| T1716EP/25 | 25 | 35 | 5 | 16 | 48 | 8 | 150 | 720 | 40 | Good |
| T1716EP/32 | 32 | 42 | 5 | 16 | 48 | 8 | 190 | 890 | 40 | Good |
| T1716EP/38 | 38 | 49 | 5.5 | 16 | 48 | 8 | 230 | 1160 | 40 | Good |
| T1716EP/40 | 40 | 51 | 5.5 | 16 | 48 | 8 | 240 | 1250 | 40 | Good |
| T1716EP/51 | 51 | 62 | 5.5 | 16 | 48 | 8 | 300 | 1450 | 40 | Good |
| T1716EP/63 | 63 | 75 | 6 | 16 | 48 | 8 | 380 | 2000 | 40 | Good |
| T1716EP/76 | 76 | 90 | 7 | 16 | 48 | 8 | 450 | 2350 | 40 | Good |
| T1716EP/102 | 102 | 116 | 7 | 16 | 48 | 8 | 600 | 3800 | 40 | Good |
| T1716EP/127 | 127 | 147 | 10 | 16 | 48 | 8 | 760 | 6200 | 40 | Good |
| T1716EP/152 | 152 | 176 | 12 | 16 | 48 | 8 | 1140 | 8240 | 40 | Good |
