MDS - Olive Green General Purpose PVC Suction and Delivery Hose with Rigid PVC Helix Reinforcement (Medium Duty)

Product Code: NXNF

MDS Olive Green General Purpose PVC S&D Hose with Rigid PVC Helix (Medium Duty)

Description

Applications
Excellent for liquid suction and delivery, particularly suitable to be used on tank trucks thanks to its physical-mechanical features.

Technical

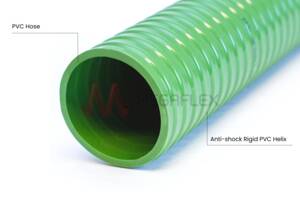

PVC hose reinforced with an anti-shock rigid PVC spiral. Completely free from phthalates with smooth bore, slightly corrugated outside.

Properties
Particularly suitable to be used even at low temperatures, high mechanical properties, light, flexible, good bending, resistant to torsion, crushing, weather conditions, ageing, ozone, hydrolysis and most chemicals.

Standards

Accessories

Temperature

-25°C to 60°C

Construction

Wall: PVC
Helix: PVC
Surface Finish: Smooth

Available Colours

Green
Olive Green

Applications

Tank trucks

Suitable Media

Liquid

Part	Inner Diameter	Outer Diameter	Wall Thickness	Working Pressure	Burst Pressure	Vacuum Rating	Bend Radius	Weight	Length	Straight Length?	Volume	Colour	Availability

NXNF013	13	18	2.30	3.5	10.5	8	75	140	50	No	0.032	Clear, Ivory	Production
NXNF016	16	21.6	2.5	3.33	10	8	85	180	50	No	0.039	Clear, Ivory	Production
NXNF019	19.1	25.1	2.7	3.33	10	8	95	230	50	No	0.054	Clear, Ivory	Good
NXNF020	20	26	2.7	3.33	10	8	95	240	50	No	0.056	Clear, Ivory	Good
NXNF022	22	28	2.7	3.33	10	8	100	260	50	No	0.071	Clear, Ivory	Production
NXNF025	25	31	2.7	3.33	10	8	110	300	50	No	0.078	Clear, Ivory	Good
NXNF030	30	36	2.7	3.33	10	8	130	350	50	No	0.115	Clear, Ivory	Production
NXNF032	31.8	38	2.8	3.33	10	8	140	390	50	No	0.122	Clear, Ivory	Good
NXNF035	35	42	2.8	3.33	10	7	150	440	50	No	0.134	Clear, Ivory	Production
NXNF038	38.1	45.7	3	3.33	10	7	160	520	50	No	0.146	Clear, Ivory	Good
NXNF040	40	47.6	3	3.33	10	7	170	550	50	No	0.183	Clear, Ivory	Good
NXNF045	45	53.2	3.2	3.33	10	7	180	670	50	No	0.204	Clear, Ivory	Production
NXNF050	50	59	3.4	3.33	10	7	200	810	50	No	0.255	Clear, Ivory	Production
NXNF051	51.5	60.5	3.4	3.33	10	7	210	830	50	No	0.261	Clear, Ivory	Production
NXNF052	50.8	59.8	3.4	3.33	10	7	200	820	50	No	0.258	Clear, Ivory	Good
NXNF055	55	64.4	3.4	3.33	10	7	220	910	50	No	0.278	Clear, Ivory	Production
NXNF060	60	69.4	3.4	3.33	10	7	240	990	50	No	0.400	Clear, Ivory	Production
NXNF063	63.5	72.9	3.5	3.33	10	7	250	1060	50	No	0.420	Clear, Ivory	Good
NXNF065	65	74.6	3.6	3.33	10	7	250	1120	50	No	0.430	Clear, Ivory	Production
NXNF070	70	80.2	3.7	3.33	10	7	270	1220	50	No	0.462	Clear, Ivory	Production
NXNF076	76.2	86.8	3.9	3.33	10	7	290	1390	50	No	0.625	Clear, Ivory	Good
NXNF080	80	91.2	4.2	3	9	7	310	1540	50	No	0.657	Clear, Ivory	Production
NXNF090	90	102	4.5	3	9	6	360	1880	30	No	0.588	Clear, Ivory	Production
NXNF100	100	113	4.8	3	9	6	400	2200	30	No	0.866	Clear, Ivory	Production
NXNF102	102	115	4.8	3	9	6	400	2240	30	No	0.882	Clear, Ivory	Good
NXNF110	110	124	5.1	3	9	5	440	2570	30	No	0.949	Clear, Ivory	Production
NXNF120	120	134	5.1	2	6	5	550	2790	30	No	1.07	Clear, Ivory	Production
NXNF127	127	141	5.2	2	6	5	580	3040	30	No	1.13	Clear, Ivory	Production
NXNF150	152	168	6.2	2	6	5	660	4390	20	No	1.34	Clear, Ivory	Production
NXNF152	152	169	6.2	2	6	5	660	4420	20	No	1.35	Clear, Ivory	Production
NXNF200	200	220	6.5	1.5	4.5	4	850	6420	10	No	2.13	Clear, Ivory	Production
NXNF203	203	223	6.5	1.5	4.5	4	850	6520	10	No	2.16	Clear, Ivory	Production
NXNF250	250	271	6.8	1.17	3.5	4	1500	8470	10	Yes	0.734	Clear, Ivory	Production
NXNF300	300	323	7.3	0.833	2.5	4	1700	11120	10	Yes	1.04	Clear, Ivory	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 for further details!
