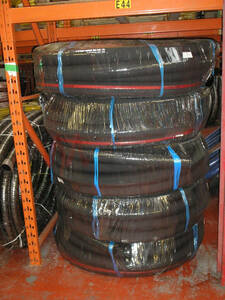

Oil Suction & Delivery Hose

Product Code: T6702

Black NBR Oil S&D Hose with Black CR/NBR Cover, Textile Plies and Steel Helix

Description

Oil Suction and Delivery Hose manufactured to BS3492:1987. Cover: Black CR/NBR resistant to weather, abrasion, oil and ozone. Reinforced with textile plies, high tensile steel wire helix. Black NBR - suitable for use with oils and petroleum products with an aromatic content up to 40%.

Temperature

-25°C to 100°C

Construction

Wall: Rubber
Reinforcement: Textile
Helix: Steel
Surface Finish: Smooth

Suitable for aromatic hydrocarbons up to 50% aromatic content.

Suitable Media

Petroleum

Available Colours

Black

Part	Inner Diameter	Outer Diameter	Working Pressure	Burst Pressure	Bend Radius	Weight	Length	Availability

T6702/19	19	29	10	30	114	600	40	Good
T6702/22	22	32	10	30	130	700	40	Good
T6702/25	25	35	10	30	152	900	40	Good
T6702/32	32	42	10	30	190	1100	40	Good
T6702/35	35	45	10	30	210	1050	40	Good
T6702/38	38	48	10	30	228	1300	40	Good
T6702/45	45	55	10	30	267	1500	40	Good
T6702/48	48	60	10	30	286	1700	40	Good
T6702/51	51	61	10	30	305	1900	40	Good
T6702/57	57	69	10	30	330	2200	40	Good
T6702/60	60	71	10	30	355	2250	40	Good
T6702/63	63	74	10	30	381	2400	40	Good
T6702/70	70	82	10	30	420	2350	40	Good
T6702/76	76	88	10	30	457	2900	40	Good
T6702/80	80	92	10	30	480	2800	40	Good
T6702/90	90	105	10	30	533	4000	40	Good
T6702/102	102	118	10	30	610	4500	40	Good
T6702/114	114	132	10	30	622	5250	40	Good
T6702/127	127	145	10	30	635	5900	40	Good
T6702/152	152	172	10	30	915	8200	40	Good

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 for further details!
