PharmaSteel - Clear TPE Rubber Hose with Stainless Steel Helical Reinforcement (High Alcohol Resistance)
Product Code: HS01
Description
Applications
Versatile suction and delivery hose designed to convey food, cosmetic, health care and pharmaceutical products. Suitable for a wide range of media such as premium wines, fruit juices, vinegar, spirits with alcoholic content up to 96%, creams, soaps, milk and by-products; also resistant to products containing oils and fats in accordance with EU Regulation n° 10/2011. Pharmasteel does not need any vulcanization process, therefore it prevents the risk of leaching of curing agent residues into the end product (peroxide or platinum volatile rests). It allows to save energy sources and limit CO2 emissions. For cleaning and disinfecting, consult our cleaning instructions. We do not recommend the use of SIP cleaning, which can severely impair the hose life.
Technical

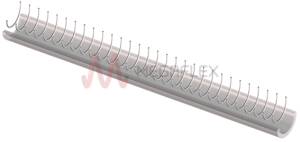

Flexible hose made from TPE hygienic rubber reinforced with Aisi 302 stainless steel spiral. Inside and outside completely smooth to enhance flow properties and allow easy cleaning and sterilization processes. Cover provides excellent resistance to ozone, ageing and weather condition.
Properties
The extruded, low porosity TPE S&D Hose reduces permeation problems. Highly neutral in taste and odour, it preserves the organoleptic properties of the medium. Good chemical resistance to acids and alkaline solutions and good resistance to permeability. Versatile rubber resistant also to oils and fats under common use conditions.
Standards
Food grade according to the EU Regulation n° 10/2011, FDA regulations (Title 21 CFR 177.2600 for aqueous foods (e)). Compliant with the pharmaceutical standards USP Class VI. Resistant to hydrolysis and proliferation of bacteria. It can be made electrically bonded according TRB S 2153 by grounding the spiral. The electrical resistance R ≤ 102 Ohm/m is according to ISO 8031 - ATEX Directive 94/4/EC and 99/92/EC).
Accessories
Safeback
Food Quality
- Suitable for medical & pharmaceutical applications according to USP Class VI.
- FDA regulations (Title 21 CFR 177.2600 Part E for aqueous foods).
- EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
- EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
- EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
- EU Regulation 10/2011 Food Simulant D1: Alcohol content >20% and oil-in-water emulsions.
- EU Regulation 10/2011 Food Simulant D2: Foods with free fats at the surface.
- Suitable for alcohol up to 96%.
Temperature
- -30°C to 80°C
Suitable Media
- Food
- Cosmetic
- Health care
- Pharmaceutical products
- Wines
- Fruit juices
- Vinegar
- Spirits
- Creams
- Soaps
- Milk
- Oil
- Fats

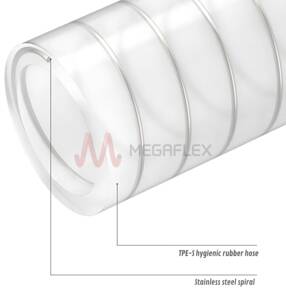

Construction
- Wall: TPE-S Rubber
- Helix: Steel
- Surface Finish: Smooth
Applications
- Pharmaceutical
Available Colours
- Clear
Part | Inner Diameter | Outer Diameter | Working Pressure | Vacuum Rating | Bend Radius | Weight | Length | Volume | Availability |
---|---|---|---|---|---|---|---|---|---|
HS01010 | 10 | 16 | 1.5 | 8.5 | 50 | 140 | 60 | 0.028 | Production |
HS01013 | 13 | 19 | 1.5 | 8.5 | 60 | 170 | 60 | 0.038 | Good |
HS01016 | 16 | 22.4 | 1.3 | 8.5 | 70 | 215 | 60 | 0.048 | Production |
HS01019 | 19 | 26 | 1.3 | 8.5 | 90 | 270 | 60 | 0.075 | Good |
HS01025 | 25 | 33 | 1 | 8.5 | 110 | 405 | 60 | 0.127 | Good |
HS01030 | 30 | 38 | 1 | 8.5 | 140 | 475 | 60 | 0.146 | Production |
HS01032 | 32 | 40.4 | 1 | 8.5 | 140 | 525 | 60 | 0.155 | Production |
HS01035 | 35 | 43.4 | 1 | 8.5 | 160 | 560 | 60 | 0.167 | Production |
HS01038 | 38 | 47 | 1 | 8.5 | 170 | 640 | 30 | 0.120 | Good |
HS01051 | 51 | 61 | 1 | 8 | 230 | 1045 | 30 | 0.264 | Good |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
