Plutone Press Clear PVC S&D Hose with Steel Wire Helix and Polyester Yarn (Biovinyl)

Product Code: B301

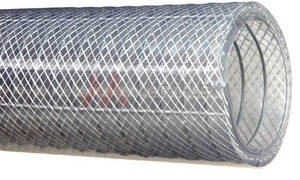

Biovinyl Food, Dairy and Beverage Hose up to 50% Alchohol Content

Description

Ideal for suction and delivery of liquids and dry substances in the food industry such as drinks, juices, wine, vinegar and spirits with max alcohol content up to 50%. Suitable for fatty foods or milk and dairy products.

Features and Applications

Flexible PVC hose reinforced with a high tenacity polyester yarn and a steel spiral, produced with Biovinyl™: a revolutionary bio-based compound, obtained mainly from renewable biological sources. It allows for the reduction of CO2 emissions during its production and disposal process.

Properties

Smooth inside and outside to ensure optimal flow. Completely free from phthalates. Resistant to chemicals, weather conditions, ageing, ozone, UV rays, hydrolysis.

Food grade according to EU 10/2011 (classes A,B, C, D1) and to FDA CFR-21-176.170., RoHS 2011/65/EU Directive, REACH Regulation (1907/2006). It can be made electrically bonded by grounding the spiral. The electrical resistance R ≤ 10² Ohm/m is according to ISO 8031 - ATEX DIRECTIVE 2014/34/UE and 99/92/EC Bore Finish: Smooth

Food Quality

FDA regulations (Title 21 CFR 177.2600 Part D for dry foods).
FDA regulations (Title 21 CFR 177.2600 Part E for aqueous foods).
EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
EU Regulation 10/2011 Food Simulant D1: Alcohol content >20% and oil-in-water emulsions.
Suitable for alcohol up to 50%.

Temperature

-10°C to 60°C

Suitable Media

Food liquids
Drinks
Dairy products
Milk
Dry food
Powders
Beverages
Fruit juices
Wine
Liquors
By-products
Water
Vinegar
Spirits

Applications

Filling machines
Dispensers
Reusable systems
Beverage industry
Food processing
Eco-friendly applications
Dairy industry
Farming
Agriculture
Marine

Certification

EU 10/2011
FDA 21 CFR 176.170
ISO 8031
ATEX DIRECTIVE 2014/34/UE and 99/92/EC
RoHS
REACH

Construction

Wall: Biovinyl PVC
Reinforcement: Polyester
Helix: Steel

Electrical Resistance

Conductive to 10² Ω/m

Available Colours

Clear

Part	Inner Diameter	Outer Diameter	Wall Thickness	Working Pressure	Burst Pressure	Vacuum Rating	Bend Radius	Weight	Length	Volume	Availability

B301010	10	18	4	22.3	66	10	30	245	60	0.033	Production
B301012	12	20	4	18.8	57	10	36	280	60	0.039	Production
B301014	14	22	4	19.0	57	10	42	315	60	0.048	Production
B301016	16	25	4.5	17.6	54	10	48	395	60	0.061	Production
B301018	18	27	4.5	16.4	48	10	54	435	60	0.091	Production
B301020	20	29	4.5	14.5	42	10	60	475	60	0.106	Good
B301022	22	31	4.5	13.6	42	10	66	510	60	0.111	Production
B301025	25	35	5	11.9	36	10	75	655	60	0.146	Good
B301030	30	40	5	11.6	36	9	90	765	60	0.184	Good
B301032	32	43	5.5	10.7	33	9	96	890	60	0.214	Good
B301035	35	46	5.5	10.1	30	9	105	960	60	0.225	Good
B301038	38	49	5.5	10.4	30	9	110	1030	30	0.198	Good
B301040	40	51	5.5	9.93	30	9	120	1080	30	0.202	Good
B301045	45	58	6.5	9.00	27	8	140	1505	30	0.241	Good
B301050	50	63	6.5	8.24	24	8	150	1650	30	0.286	Good
B301060	60	74	7	7.25	21	8	180	2080	30	0.365	Production
B301063	63	77	7	7.01	21	8	190	2175	30	0.379	Good
B301070	70	85	7.5	6.21	18	7	210	2525	30	0.469	Production
B301076	76	90.8	7.4	5.95	18	7	230	2685	30	0.603	Good
B301080	80	94.9	7.43	5.79	18	7	240	2790	20	0.498	Production
B301090	90	106	8	4.79	15	7	270	3435	20	0.760	Production
B301102	102	118	8	4.53	15	7	310	3850	20	0.801	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 or email us at sales@megaflex.co.uk for further details!
