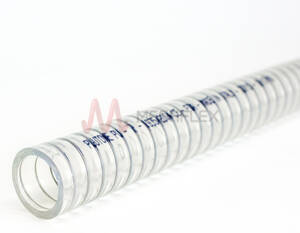

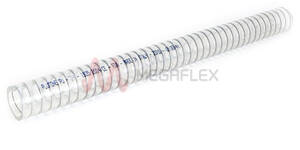

Plutone PU Clear Ether Polyurethane S&D Hose Reinforced with Stainless Steel Helix
Product Code: PQ01
Description
Suction of powders and high abrasive granules. Ideal solution to convey pharmaceutical and cosmetic powders, pills, tablets of medicines; for food flours and grains, sugar, salt, dry fruit, olive oil and fatty foods. Suitable also for food, pharmaceutical and cosmetic liquids with alcohol concentration up to max 20%. Plutone PU does not need any vulcanisation process, therefore it prevents the risk of leaching of curing agent residues into the end product (peroxide or platinum volatile rests). It allows to save energy sources and limit CO2 emissions.
Technical
Flexible hose made from ether-based hygienic TPU with AISI 302 stainless steel spiral. Inside and outside completely smooth to enhance flow properties and allow easy cleaning and sterilisation processes. It can be electrically bonded to R ≤ 102 Ohm/m by grounding the spiral.
Properties
The extruded, low porosity TPU tube reduces permeation problems. Highly neutral in taste and odour, it preserves the organoleptic properties of the medium. Very good chemical resistance to acids and alkaline solutions and good resistance to permeability. Versatile rubber resistant also to oils and fats under common use conditions. Without halogens. Bore Finish: Smooth
Food Quality
- FDA regulations (Title 21 CFR 177.2600 Part E for aqueous foods).
- EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
- EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
- EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
- EU Regulation 10/2011 Food Simulant D2: Foods with free fats at the surface.
- EU Regulation 10/2011 Food Simulant E: Testing specific migration into dry foods.
- Suitable for alcohol up to 20%.
Temperature
- -30°C to 90°C, intermittently as high as 125°C
Suitable Media
- Powders
- Pills and tablets
- Food flours and grains
- Sugar and salt
- Dry fruit
- Cosmetic liquids
- Wine
- Fruit juices
- Vinegar
- Spirits
- Olive oil
- Fatty foods
Applications
- Pharmaceutical
- Food industry
- Cosmetics industry
- Health care
- Medical
- Wine industry
- Olive oil industry
Certification
- ATEX DIRECTIVE 2014/34/UE and 99/92/EC
- ISO 8031
- EU 10/2011
- FDA 21 CFR 177.2600
- RoHS
- REACH

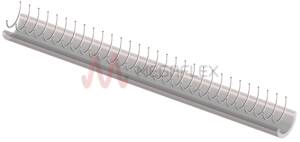

Construction
- Wall: Ether-TPU
- Helix: AISI 302 Stainless steel
Electrical Resistance
- Conductive to 102 Ω/m
Available Colours
- Clear
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Vacuum Rating | Bend Radius | Weight | Length | Volume | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PQ01008 | 8 | 14.2 | 3.1 | 2.5 | 12.5 | 9.5 | 40 | 140 | 60 | 0.024 | Production |
| PQ01012 | 12 | 18 | 3 | 2.5 | 12.5 | 9.5 | 60 | 180 | 60 | 0.033 | Production |
| PQ01016 | 16 | 22.4 | 3.2 | 2.5 | 12.5 | 9.5 | 80 | 245 | 60 | 0.048 | Production |
| PQ01020 | 20 | 27 | 3.5 | 2.5 | 12.5 | 9.5 | 100 | 320 | 60 | 0.086 | Production |
| PQ01025 | 25 | 33 | 4 | 2 | 10 | 9.5 | 130 | 460 | 60 | 0.127 | Good |
| PQ01030 | 30 | 38 | 4 | 2 | 10 | 9.5 | 150 | 535 | 60 | 0.146 | Production |
| PQ01032 | 32 | 40.4 | 4.2 | 2 | 10 | 8.5 | 160 | 595 | 60 | 0.155 | Production |
| PQ01038 | 38 | 47 | 4.5 | 2 | 10 | 8.5 | 190 | 740 | 30 | 0.120 | Good |
| PQ01040 | 40 | 49.2 | 4.6 | 2 | 10 | 8.5 | 200 | 790 | 30 | 0.126 | Production |
| PQ01050 | 50.8 | 60.8 | 5 | 1.5 | 7.5 | 8 | 250 | 1165 | 30 | 0.263 | Good |
| PQ01060 | 60 | 71.8 | 5.9 | 1.5 | 7.5 | 8 | 300 | 1580 | 30 | 0.310 | Production |
| PQ01063 | 63 | 74.8 | 5.9 | 1.5 | 7.5 | 8 | 320 | 1650 | 30 | 0.323 | Production |
| PQ01076 | 76 | 88.2 | 6.1 | 1.5 | 7.5 | 7 | 380 | 2020 | 30 | 0.508 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
