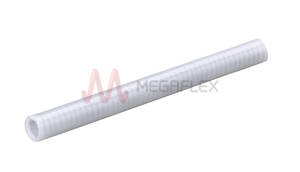

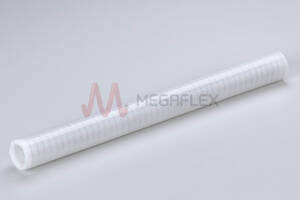

Sil-Life W Platinum Cured Silicone Hose with Polyester Yarn and Stainless Steel Helix
Product Code: WK01
Description
Choose our high pressure Sil-Life W hose from our premium range for your critical transfer needs where only the purest, most resilient, and flexible hose will do.
- Pharmaceutical Industry: Ensuring the integrity of sensitive substances.
- Cosmetic Industry: Protecting the purity of high-end products.
- Biotech Sector: Maintaining sterility for research and production.
- Food Industry: Safe for the transfer of consumables where taste and odor preservation is paramount.
Technical Specifications
- Material: Extruded Platinum-cured silicone with a reinforced structure of polyester plies and stainless steel AISI 316L spiral.
- Design: High purity silicone compound reduces the risk of bacteria buildup and permeation of residues and offers exceptional pressure and vacuum capabilities.
- Outer Finish: Glossy with food-safe ink marking.
Properties
- Hygienic: Ultra-smooth internal surface minimises bacterial growth and residue permeation.
- Non-Contaminating: Ensures no alteration to the taste or smell of transferred media, preserving organoleptic qualities.
- Durable: Chemically inert cover withstands environmental factors, ozone, chemical exposure, and temperature fluctuations.
- Clean: Post-cure treatment certified to avoid volatile particle release, enhancing process hygiene.
Compliance Standards
- Meets USP CLASS VI and European Pharmacopoeia 3.1.9 standards.
- Non-cytotoxic as per ISO 10993-5.
- Adheres to FDA Title 21 CFR 177.2600 for both aqueous and fatty foods.
- Compliant with EU Regulation 10/2011 (Classes A, B, C, D1) for food contact materials. Tested with acid, 20% alcohol, and 50% alcohol simulants to ensure material safety
Optional: Accessories and Fittings
Reusable systems, Crimped systems *Remember, for temperatures constantly exceeding +100°C, pressure resistance decreases by approximately 1% per additional degree Celsius. *Not for Implantation *Not for continuous steam transfer Bore Finish: SmoothFood Quality
- Suitable for medical & pharmaceutical applications according to USP Class VI.
- FDA regulations (Title 21 CFR 177.2600 Part E for aqueous foods).
- EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
- EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
- EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
- EU Regulation 10/2011 Food Simulant D1: Alcohol content >20% and oil-in-water emulsions.
- Suitable for alcohol up to 50%.
Temperature
- -60°C to 180°C
Suitable Media
- Water
- Steam
- Hot water
- Chemicals
- Alcohol
- Spirits
- Food liquids
- Cosmetics
- Pharmaceutical products
- Wines
- Fruit juices
- Vinegar
- Spirits
- Creams
- Soaps
Applications
- Cleaning
- Disinfecting
- Pharmaceutical
- Cosmetic
- Biotech
- Food industry
- Steam-in-place
- Autoclaving
- Medical
Certification
- USP CLASS VI
- European Pharmacopoeia 3.1.9
- ISO 10993-5
- EU 10/2011
- FDA 21 CFR 177.2600
- RoHS
- REACH
Construction
- Wall: Platinum-cured silicone
- Reinforcement: Polyester
- Helix: AISI 316L Stainless steel
Electrical Resistance
- Conductive to 102 Ω/m
Available Colours
- White
| Part | Inner Diameter | I.D. (64th inch) | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Vacuum Rating | Bend Radius | Weight | Length | Volume | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ″ | ″ | ||||||||||||
| WK01012 | 1⁄2 | 1⁄2 | 12.7 | 25.1 | 6.2 | 10 | 40 | 10 | 45 | 530 | 4 | 0.003 | Production |
| WK01019 | 3⁄4 | 3⁄4 | 19.1 | 31.4 | 6.18 | 10 | 40 | 10 | 65 | 700 | 4 | 0.004 | Production |
| WK01025 | 1 | 1 | 25.4 | 37.8 | 6.2 | 10 | 40 | 10 | 80 | 970 | 4 | 0.006 | Production |
| WK01031 | 11⁄4 | 31.8 | 44.2 | 6.2 | 10 | 40 | 10 | 120 | 1050 | 4 | 0.008 | Production | |
| WK01038 | 11⁄2 | 38.1 | 50.5 | 6.2 | 10 | 40 | 10 | 150 | 1410 | 4 | 0.010 | Production | |
| WK01050 | 2 | 2 | 50.8 | 63.2 | 6.2 | 10 | 40 | 10 | 180 | 1660 | 4 | 0.016 | Production |
| WK01063 | 21⁄2 | 63.5 | 75.9 | 6.2 | 7 | 28 | 10 | 220 | 2000 | 4 | 0.023 | Production | |
| WK01076 | 3 | 3 | 76.2 | 88.6 | 6.2 | 4 | 16 | 10 | 250 | 2430 | 4 | 0.032 | Production |
| WK01101 | 4 | 4 | 102 | 114 | 6.2 | 3 | 12 | 10 | 360 | 3000 | 4 | 0.052 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
